Energy consumption data collection: case study on data center in a Thai University



Energy usage in has been increased due to the rising demand of cloud infrastructure. The government policy has been focused on building the green IT data center. The energy data need to be collected in order to monitor the energy usage. However, in an old typical data center, the building has been built with no support of such data collection. In this research, we aim to design the energy data collection system for our existing data center, a case study of data center in Thailand at the university. Based on the collected data, an energy usage monitoring system and prediction can be developed.


In the case study of Kasetsart University data center, the building and electric layouts were predetermined. The building layout and existing IT hardware were investigated. We designed the meter types and the number of meters to be installed for the building the energy data collection system. The corresponding database system was also designed for data logging, data visualization and analysis purpose.


As a result, 25 installed meters along with the add-on network system were installed for logging data. A data usage example was demonstrated by building the data visualization and analysis. The presented 1 year dataset collected showed the changes of energy usages which can be used to compare with real activities happening in the campus. This encourages the integration of other related environment data such as outside temperature which may affect the electric billing cost. The dataset can be used for prediction of the electric usage; thus, the policy for reducing the electric billing cost could be established. In this paper, as a data note, we focus on the methodology of data collection required for data center.


Data center is one of the top organizations that consume energy. From Sverdlik (2016), data centers in the United States consume upto 70 billion kWh which is about 2% of the country’s energy usage and equivalent to total 6.4 million household energy usage. This consumption rate has increased from 2010 to about 4%.

Recent previous works reported that most energy consumed are from servers and cooling systems (Hemsoth 2016; Jennings 2016; Office of Energy Efficiency and Renewable Energy 2016). The expense is directly related to the server about 60% and the cooling system about 40%. Also, from UN report, the cooling and heating systems are sources of energy usage upto 70% of the city (Zorba 2024).

In a typical data center, there are various sources of power consumption including IT and non-IT data components. Efficient power usage in a data center tends to spend most of the power in IT equipment. However, this is hardly possible in the tropical country like Thailand. Several servers running computing-intensive services tend to consume lots of energy and yield lots of heat dissipation. Proper cooling equipment known as CRAC (Computer Room Air Condition) are usually required to cool down the servers so that they can run services normally. However, the size of CRAC system and the operational policy in a data center is varied depending on many design factors, e.g, vendor setup, floor plan layout etc.

In this research, we aim to develop an energy usage monitoring system and prediction, a case study of data center in Thailand at the university. The building was constructed several years ago. The physical layout as well as the rack locations were fixed. The servers needed to run 24/7 and there were no programs for resource usage profiling. To achieve our goal, we study existing layouts and IT facilities and attempt to design the appropriate meter installation solutions under the current situation for collecting energy usage data under the reasonable budget. The network wiring and component connection were designed for data logging. At last, the obtained data were analyzed and the prediction system were developed. The energy usages were collected as an open data collection (Chantrapornchai and Chatlatanakulchai 2023).

This presented data note demonstrates the contributions in the following aspects.

  • Experience sharing in designing the system for energy data collection in the fixed floor plan data center.

  • Dataset and example visualization aided in finding the factors that affect the power usage in the data center.

  • Demonstration of an application of machine learning to create the prediction models.

Several datasets have been proposed about energy consumption. For example, in (as of 28 January 2024), we found 9 datasets related to energy consumption. They included resident energy consumption, monthly and annual energy consumption, building synthetic dataset, etc. Some of them were the table reports and presented APIs for data visualization. From, there are 81 related datasets by searched keywords “data center energy consumption” (as of 22 March 2024). Only a few of them related to electricity power consumptions. In the following, we give some examples of detailed datasets that are available for data scientists for in-depth analysis.

  1. 1.

    Dua and Taniskidou (2017) presented the energy consumption in households divided into room types and three submeters. It consists of watt-hr energy consumption values. The total period is 47 months. The collected data contain 9 fields including datetime, voltage, and global reactive power. The dataset was also published in Kaggle (

  2. 2.

    Candanedo et al. (2017) collected energy usage in a household. The sampling time is 10 seconds and the total period is 4.5 months. The temperature and humidity data were also collected every 3.3 min. The dataset includes the weather data collected from the base station at Chievres Airport, Belgium.

  3. 3.

    Makonin et al. (2016) presented the dataset of households during 2012-2014 in Canada. The meters were installed for each room in the house. The hourly weather data were also collected. The dataset contains CSV file of electric meter data, weather data, historic electric, water, gas billing and usage.

  4. 4.

    Chavat et al. (2022) presented the energy consumption of households in Uruguay. The dataset was collected by Uruguayan Electricity Company (UTE) and was studied by Universidad de la República. There are four subsets: total household consumption, total electric water heater, electric appliance, and customer information.

  5. 5.

    Bazurto et al. (nd) presented the dataset from the facilities of the Information Technology Center (CTI) of the Escuela Superior Politécnica del Litoral (ESPOL). The data were collected from an HP Z440 workstation for 245 days (35 weeks). The sampling interval was one value per second. The dataset contains attributes for the power consumption of CPU, GPU, along with the memory usage, as well as the CPU temperature etc.

  6. 6.

    Sheppy Michael et al. (2011) collected the dataset for NREL building. NREL building was a research facility building. The dataset contains hourly data for: Total Cooling (kW)-Total Heating (kW)- Total Mechanical (kW)-Total Lighting (kW)-Total Plug Loads (kW)-Total Data Center (kW)-Total Building (kW)-PV (kW)-Building Net (kW).

After achieving the dataset, machine learning or AI is often utilized for predicting the energy consumption usage (Gao 2018; Li et al. 2017; Shoukourian et al. 2017). Some famous current data center has utilized AI in some form for managing facilities (Donovan 2018; DeepMind 2018).

From previous work, two aspects of the energy datasets were demonstrated. First, in the aspect of using meters, datasets were proposed in the context of household building since the meter installation logistics was not too complex. Second, in the context of server loads, CPU/GPU workload along with the power consumption on the computer server were gathered. Most datasets report only based on a specific computer since since this approach needs some middleware programs to do profiling which cannot be done easily in a real data center due to several reasons. For example, the data logging may degrade server performance and the server could not be stopped to install the program, etc.

This data note mainly differs from previous datasets in the aspect of the organization context. We rely on the data center context, rather than the household. The data center is divided into rooms containing servers and IT equipment. In achieving the data, challenges were relevant to data logger installation in the building that there had a fixed layout and the operations that run continuously. Due to the management policy, we cannot stop the operations and installed the profiling software. We, then, had to focus on the design of data logger installation which needs to solve the solutions such as some meters exist; however, data cannot be logged. Or some portion of the floor plan where the servers are located did not have separate meters while considering the budget. As a results, it enables us to collect power usage for servers as well as estimate the power usage for other IT components in the data center. The design experience along with the datasets will be benefits to the readers in the fields.

In the next section, methodology of acquiring data is presented. Section Results presents the data results and section Data processing and analysis demonstrates the usage of data. Section Discussion and implications discusses the results and implications.


Organization context

Our university, Kasetsart University, is a large-size university, serving around 38,000 students. The data center is under Office of Computing Service (OCS) which serves the core functions of the university such as the registration, payroll, e-mail, cloud service, etc. The data center occupies one floor of the OCS building. The building also includes offices, lecture rooms, computer laboratory rooms, conference rooms, etc. According to the university billing, the monthly billing cost for the data center is around 40% of the whole building.

From the previous record, e.g. January, 2017, the total electricity cost of the building was 500,000 THB Off-Peak Power was 370 kW and On-Peak Power was 357 kW which is about 37% is the total cost. The expense is higher around 10–15% during March, April, May for the summer time in Thailand.

For a typical university in Thailand, the data center is medium size. It is divided into several rooms. Each room contains servers of the university and colocated servers. The main servers of the university have the workload of registration, personnel, payroll, etc. Our university was issued the funding to the university to develop the energy monitoring use case in a data center of the university under the theme of big data analytics for energy, by Energy Policy and Planning Office (EPPO), Ministry of Energy, Thailand, in 2017. To the best of our knowledge, we were the first university granted by EPPO to develop the power consumption monitoring for data center context.

In order to proceed, power usage must be logged. Proper meters and data loggers must be properly installed. Challenges in our context are the following:

  • The layout of the server and CRAC locations which cannot be changed and the servers cannot stop running.

  • There are many IT and non-IT equipment which may directly or indirectly be connected to the meters.

  • Fixed amount of budget e.g. 500,000 THB was for the hardware cost.

  • Some equipment are modern; i.e. there are power usage display on them.

The following subsections describe our process to tackle these challenges. We have to analyze the floor plan, electric wiring, and study of existing meters. Then, within the budget and criteria, meter installation plan is designed. At last, the data integration is presented.

Floor plan analysis

The whole building serves many functions including office administration, computer training rooms, lecturer rooms, etc. It has the power meter installed by the Metropolitan Electricity Authority on the \(1^{st}\) floor. Figure 1 shows the floor plan of the data center on the \(6^{th}\) floor. The MDB room is the controlled electricity room connected to the \(1^{st}\) floor main electricity room. There are 5 rooms divided to store servers, networks, equipment: server room 1, server room 2, co-location room (servers not own by the university), NOC room and network room. Each room is connected with ULC channels for power meters.

The server room1 and server room 2 shown in Fig. 1 are used for the servers of university. For example, server room 1 shown in Fig. 1 is where the main servers of the university are located. This room is connected to CRAC3 and CRAC4. CRAC3 and CRAC4 were alternately used daily. The temperature setting is 21 centigrade. The ULC5 and ULC6 control boxes are connected for both server racks for the server room 1. ULC9 and ULC10 are in the colocation rooms. ULC1 and ULC2 are in the spare room which connects to the reserved racks. ULC3 and ULC4 are in the network room. All CRAC1-CRAC6 are central cooling systems where each two are connected to blow the cool air through the underground of the aligned server rack in the room and the hot air is blown out from each room in the pipes hidden in the ceiling.

Fig. 1
figure 1

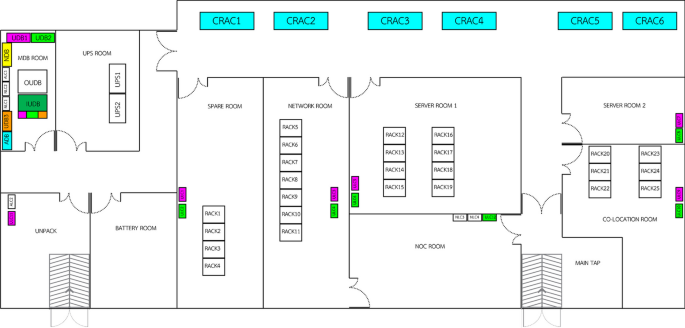

The whole data center room layout

Fig. 2
figure 2

a Floor plan of the main electricity room (MDB) b Meter connection layout

As shown in the previous work, reducing the energy usage can be related to the air flow management and other IT equipment. The effective cooling and airflow in a data center is necessary to eliminate the heat (Phelps 2018). The main concept is that cool air from CRAC should go through the server intakes and hot air from the server release goes through CRAC returns. The CRAC setup should be perpendicular to the rack rows. In our case, due to the fixed infrastructure in our data center, it is not possible to move the server racks. However, our CRAC was already setup according to this manner. We have surveyed the number of servers used and IT equipment in the data center room. The main energy consumption in the room were from the servers and CRACs. The running servers already connected to ULC channels which can later be connected to the meters while other equipment like network switches, UPS, storage, etc. cannot be monitored directly. Since the cost of hardware installation is high if more meters and sensors were used. The power consumption of these IT equipment may be inferred from other meters.

From the layout, the sources of energy inefficiency may be from the following. (1) the CRAC temperature setting was fixed. There are temperature sensors in the ceiling of the room but the temperature values in the room do not use to control the CRAC setting (Phelps 2018). (2) there were some equipment that was not in use but not turn off, such as UPS, network storage, etc. (3) the CRAC temperature setting can be varied depending on the server racks (Fukumoto et al. 2010). (4) the server racks were out-dated; the modern server racks that can monitor server load, resource management, may be utilized (Strom 2016). etc.

Main power consumption sources are from mostly servers, and CRACs, in the data center. We need to log the power consumptions for all these devices are much as possible. Since CRACs blow the heat from servers, induced by server workloads, CRACs’ setting can be readjusted dynamically, making it suitable for the servers’ heat dissipation. We need to measure the power usage of server loads which can imply the server workload. In order to achieve this, let us consider the electricity room shown Fig. 2a (called MDB room). The MDB room is the controlled electricity room. In this room, there are three main electric controls: IUDB, ADB, NDB. The electric connections are wired through UDB1 and UDB2 channels which is under OUDB and IUDB as in Fig. 2b. IUDB connects the two main UPS’s (UPS1,UPS2) of the university servers which are both connected to OUDB. Then, it is split to UDB1 and UDB2 which are electric controls for server racks. UDB1 controls ULC1, ULC3, ULC5, ULC7, ULC9 and ULC11 while UDB2 controls ULC2, ULC4, ULC6, ULC8, ULC10, and ULC12 respectively. On the other hands, ADB connects directly to all CRACs. NDB connects to NLC1 to NLC4 for other devices such as networking. The IUDB, OUDB, UDB1, UDB2, ADB, NDB contained meters previously installed from the outsource vendors which can view the power usages for three-phase electric but cannot log data.

Meter installation

In the data center, there are several types of equipment, IT and non-IT equipment. Challenges in this phase related to the existing floor plan/layout, equipment used, and data integration. Due to the budgeting, we have to design the way to install the meters with a reasonable cost. Since CRACs and servers are the major cost of power usage, we should log the power usage from these equipment as a first priority.

After analyzing the electric layout in 2(b), we installed the logger for all the above UDB’s. We can log the power usage for server racks, and for corresponding CRACs. The data from IUDB allows us to monitor the power consumption on UPS while the data from NDB allows us to log power consumption for the network room. The data from the logger for MDB shows the power consumption for the whole building where we can use to find the power consumption from other sources (not data center).

We explored the existing equipment and found that some have meters with data logger outputs and some does not. The typical output is RJ-485. The existing ones that have meters with data logger outputs are Schindler meters. The others require the new meter installations.

We selected the vendors for meter installation. They proposed the choices of meters as well as the specifications. Main criteria for choosing meters are data logger support, and price. The two candidates the vendors proposed that fit our budget were meters from Panasonic and Circutor. Panasonic Eco Power meters have its own programs for data logging and visualization. Thus, we preferred the second one, Circutor (modeled CVM-C10), which was also less expensive and we can write our program to connected to RS-485 and Modbus RTU. The two are common protocol which are supported by most hardware drivers. As a result, we installed the Circutor meters. The meter installation must be done carefully, not to disconnect the running operation. A Labview program was written to read meter data at low-level, and save the data to the database.

We installed the meters on server room 1, which the main server room of the university containing all mail servers and the registration system. The metered were installed for ULC5, ULC6 for both servers’ racks and for CRAC3, CRAC4 correspondingly (in Fig. 1). Three months later, all remaining meters were installed

The power meters from Circutor were installed as in Fig. 3a. for every CRAC’s and ULC’s in the MDB room. The electric cabinets were built for these meters as shown in Fig. 3b. The meter output port is RS-485 and was converted using a serial device server by Advantech, modeled EKI-1522. The LAN cable from EKI was wired to the NOC room where the university network switches are located. The fixed IP was given to the device.

Fig. 3
figure 3

a Previously installed Schneider meters. b Circutor meters. c Wiring for the meters

Inside the data center, the Schneider electric control cabinets were installed for IUDB, NDB, ADB, UDB. These meters already have the RJ485 interfaces as shown in Fig. 3a. However, they had no data logger connected to them. Thus, we connected the RS-485 cables to the EKI for a data logger. All the DB meters were used for monitoring the aggregate power consumption to estimate the power consumption of other equipment such as networking and UPS.

After each installation, we measured the error from the meter reading and from the manual clamp. As shown in Fig. 4, the current readings were 39.23A, 36.24A, 39.51A while the reading from the clamps were 39.7A, 36.2A, and 40.6A in 1), 2), 3) respectively. It was found that the errors were about 1A which was acceptable.

Fig. 4
figure 4

Comparison of installed meter values and clamp reading

As a result, totally 25 m were installed and connected to EKI data logger for collecting all energy usages (according to the color boxes in Fig. 2b).

Data aggregation

Figure 5 presents the overall system for data integration. On the left side, the meter data were collected using the equipment as described above. The data logger in the data center was connected to the data logger server using the TCP/IP. The fixed IP was given to the data logger with the courtesy of OCS. The server was installed MS-SQL 2017 as a database for storing the meter data. Labview 2018 program was implemented to connect the data logger, transform the lower-level data format to the numerical values, and store them in the database. In this paper, the focused portion is shown in the dashed box. The logged data can be further used for visualization and open data purposes. One meter data were kept separately in each database table as in Fig. 6. There are 25 tables for all 25 m.


Fig. 5
figure 5

System and data integration

Fig. 6
figure 6

Logged data tables in the database

The presented dataset is divided based on three types of installed meters. The first type is the meters for CRAC which measures the air condition units. The second one is the meters for ULC which measure the rack server units. At last, the DB meters measure the aggregate power consumption indicated in the MDB room in the floor plan.

The collection date began on 2 June 2018. At the time of writing the article, the submitted collection has an end date of 18 April 2022. The exact starting dates vary due to the phases of meter installation. There were some periods in the year 2019 and year 2020 when the data logging stopped due to the power outage and downtime of the logging computer. The sampling period is set to 1 min for each meter. This can be set in the data logger program. The total data size is around 21 GB in MS-SQL (2017) backup format. The data was also exported into 25 CSV files, each of which has the varying number of rows and starting dates as shown in Table 1.

Table 1 Total data sizes and date ranges for the dataset

Each meter data contains 56 fields described in Table 2. In this table, all attributes from the meters were read. The example values are also shown in the table. Figure 7 shows the data rows in the CSV format.

Fig. 7
figure 7

Example data rows in CSV

Table 2 Sample fields for meter data collection
Fig. 8
figure 8

Active three phase power for all CRACs in the dataset a scatter plot b box plot

Fig. 9
figure 9

Active three phase power for all ULC in the dataset a scatter plot b box plot

Figures 8a and 9a show example scatter plots for the active three phase for all CRACs and ULCs in our dataset while Fig. 8b and 9b show the box plots of the data. The average values for CRAC3-CRAC4 are 10,959.92 and 6,665.48 while the average values for ULC5-ULC6, are 6108.42, and 6531.58 respectively.

Data processing and analysis

Data cleansing

In this section, we demonstrate the usage of the dataset. As an example, the first 3-month data from CRAC3, CRAC4 and ULC5, ULC6 were extracted as CSV files. Jupyter Notebook, python language and relevant libraries such as pandas, numpy, sklearn, matplotlib, pmdarima, joblib were used to preprocess and visualize the data. The data received may be temporarily disconnected due to network connection. The sensor values may be outliners.

  1. 1.

    removing extreme values: to remove outliners by inspecting the negative values and non increasing values.

  2. 2.

    filling missing data: missing data due to network connections needs to be filled.

  3. 3.

    removing unneeded columns: columns that do not need for model creation.

The first two steps were required since there were always some error data due to some bad reading sensors. The missing data were due to some power outage periods and the intermittent disconnection of the logging server. The extreme values must be observed for each attribute to find out the maximum and minimum limits. The scheme for filling in missing values may be using mean, summation, and filling with zero, depending on the attributes. Different methods can affect the correctness of the models. Since it is time-series data, history data is used for model construction. Filling with zero or filling with mean can lead to different prediction model. This also depends on how many missing values are continuously. Imputing more values can lead to noises in data. Thus, it should be done with care (Hyndman and Athanasopoulos 2018).

Depending on the goal and the method, the third step may remove some columns. For a demonstration, we are interested in the power consumption attribute. The column “Consumed active energy kW” was chosen as a target column. This column is an accumulated value computed from “Active three phase kW”.

Figure 10 shows the example data for 3 months of such values for CRAC3, CRAC4 and ULC5,ULC6 in Fig. 10a and b respectively. It can be seen that there are some missing values and some error values. Therefore, data cleansing can be done. From the visualization, we set the maximum value for the y-axis as 30,000 and the minimum value for y as 0. We checked the non-increasing values for the y-axis. When we found the values over the maximum values and the values that were not non-increasing ones, the associated rows were dropped. In Fig. 11, the plotted of data after dropping values are shown in Fig. 11a, b for CRAC3, CRAC4 and ULC5, ULC6 respectively.

The total number of wrong values found is displayed in Table 3 Column “less” contains the number of values less than equal to zero, Column “exceed” contains the number of values more than 30,000, and Column “non-decrease” are the number of values that are non-decreasing. Figure 12 presents the resulting data after using filling with different approaches for CRAC3 and CRAC4. In Fig. 12a, b, means and bfill (backward fill) (Pandas 2024) approaches were used to fill the dropped rows respectively. Figure 13 shows the resulting data for ULC5, ULC6 with the same filling approaches, i.e., Fig. 13a, b, for means and bfill approaches respectively.

Table 3 Total missing values and wrong values
Fig. 10
figure 10

Consumed active power a CRAC3 and CRAC4 b ULC5 and ULC6

Fig. 11
figure 11

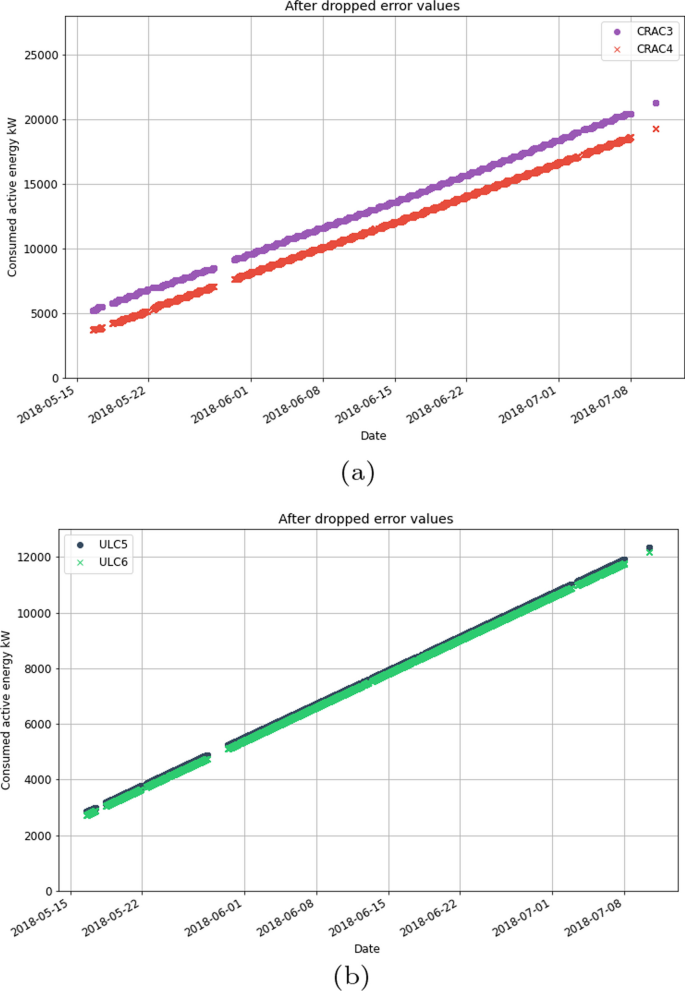

Consumed active power (drop values) a CRAC3 and CRAC4 b ULC5 and ULC6

Fig. 12
figure 12

CRAC3 and CRAC4 consumed active power a mean b bfill

Fig. 13
figure 13

ULC5 and ULC6 consumed active power a mean b bfill

Data analysis

After performing, the data cleansing as in the previous section, the data can be used to construct the prediction models. Since it is time-series data, we consider three types of models are presented: regression, autoregression, and ARIMA. In each type of model, specific parameters are explored. In regression models, one have to decide the attributes used. The correlations of attributes have to be studied. For autoregression, the lag window size must be chosen. Finally, ARIMA combines autoregression, moving average windows, and degree difference. The model is more complicated. More parameters need to be explored. In the following, we demonstrate the use of these models against our dataset.

Multivariable regression

Using the multivariable regression approach (sklearn 2024), several variables were considered whether there are relationship to the target variable. Since there were many attributes, we explored important variables using co-relations. We use corr() function in pandas to calculate. In this function, there are 3 types of co-relations: Pearson, Kendall, and Spearman (Pandas 2024).

Example correlation plots between Consumed active energy (kW) and consumed apparent energy(kVAh), consumed inductive reactive energy (kvarhL), consumed capacitive reactive energy (kvarhC) of CRAC3 are shown in Fig. 14. After calculating the co-relations, the ranking of the co-relations between “Consumed active energy” and other fields. Assume we picked the top 3 attributes with the highest co-relation values.

Using the linear regression model, the prediction for each CRAC3 and CRAC4 is shown in Fig. 15. Root means square error (RMSE) values are 0.95 and 0.94 respectively. In Fig. 16, RMSE values are 0.98 and 0.99 for ULC5 and ULC6 respectively. Figure 15 shows some noises in prediction values since the attribute values do not get cleaned except consumed active energy (kW) values.

Fig. 14
figure 14

CRAC3 Spearman correlation

Fig. 15
figure 15

Consumed active power regression a CRAC3 b CRAC4

Fig. 16
figure 16

Consumed active power regression a ULC5 b ULC6


Auto-regression is a persistent model which predicts the point at \(t+1\) from the previous time point t after that the new data point is appended and the process continues. If it is based on one previous point, lag \(=\) 1. Since this model only requires previous time points, only one field was used to create model, “consumed active energy”. The other fields were removed. Figure 17 presents RMSE values for CRAC3, CRAC4, ULC5, and ULC6 for the same data used in the previous subsection. We shifted the data by one point time unit in order to create training data for lag \(=\) 1. The total data points were 45,339 with the mean value 8175 kW. We set 67% of them to be trained data and the remaining was test data. This resulted in 48,887 training rows and 24,080 testing rows. The reported RMSE is based on the test data. The RMSE is small compared to using the linear regression approach.

Fig. 17
figure 17

Auto-regression (I) a CRAC3 b CRAC4 c ULC5 d ULC6

We implemented the auto-regression model using statsmodel in the python library (statsmodels 2024). The method automatically finds proper lag values during fitting. We used the same portion of training and testing. The library finds the number of lags and coefficients. The RMSE results are shown in Fig. 18. All of the shown cases have lag \(=\) 50 after finishing training. The RMSE values were higher compared to Fig. 17 for all the four meters.

Fig. 18
figure 18

Auto-regression (II) a CRAC3 b CRAC4 c ULC5 d ULC6


Auto-Regressive Integrated Moving Averages (ARIMA) (Hyndman and Athanasopoulos 2020) can be used with stationary data. ARIMA has 3 important parameters pd,  and q. p is the lag time, q is the number of moving average terms which is a lagged value forecasting error. For example, if \(q=5\), for y(t), we have \(e(t-1),e(t-2),\ldots e(t-5)\), where e(i) represents the difference between the moving average at \(i^{th}\) instance and at the moving average at t. At last, d is the order of difference, e.g., \(d=1\) is the first order difference. For constructing the ARIMA model, p and q values need to be estimated. The auto-correlation function (ACF) and partial auto-correlation function (PACF) were measured (Hyndman and Athanasopoulos 2020). Varying pq,  and d incurs different RMSE values. Figure 19 shows the case when using \(p=2,d=1,q=2\) and \(p=3,d=1,q=3\) for CRAC3. When performing the grid search, the best pd,  and q were found. Figure 20a presents the parameter spaces in the grid search for CRAC3 while Fig. 20c presents the RMSE when using the best parameter \(p=4,d=1,\) and \(q=4\) with the training set. For the purpose of demonstration only, the number of trained data rows is 30,409 and the number of test data rows is 14,979. The trained data achieves RMSE, 21.06. The test data has a larger RMSE, 999.91. The testing score is worse than the training score since the training set may not be generalized enough.

Fig. 19
figure 19

ARIMA (CRAC3) a \(p=2,d=1,q=2\) b \(p=3,d=1,q=3\)

Fig. 20
figure 20

ARIMA (CRAC3) a Grid search result \(p=4,d=1,q=4\) b train c test

Discussion and implications

Table 4 Prediction score of various methods (RMSE)

Table 4 summarizes accuracy for all methods for the sample dataset. It is seen that the simple method, multivariate linear regression, is simplest and effective. Multivariate regression considers more than one variable which have correlations. The linear regression is suitable for this type of data as we can see later in the visualization section. For autoregression, suitable lag time must be selected. Lag time shows a dependency window for the current time value. One might utilize grid search to find suitable lag time. In this example, few lags are better. When combining with multivariable, it would be more complex to explore both lag time and co-related variables. Similarly, with ARIMA, proper parameters, values of pdq must be explored. More data are needed since they can exhibit seasonal nature. In the above example, only 3-month data cannot demonstrate seasonal cycle very well. Longer time period data may be needed.

However, this test dataset is only for 3 months. It is opened that the methods can be trialed against the whole dataset, i.e., for other meters and longer period. The other attributes can also be considered along with other prediction models such as LSTM.

Visualization example

We constructed the sample visualization using GrafanaLab (2024) which shows system statistics, as well as CRAC, and ULC meter values in the same dashboard. The live connection to MS-SQL database was used.

Figure 21b presents the values from MS-SQL database CRAC3, CRAC4, ULC5, ULC6, to show the three phase active power, consumed energy, L1,L2, and L3 active power, etc. during that period. Figure 23 focuses on the three phase active power widgets showing max,min, average values of the four meters.

When consider the integration of the server workload data, Fig. 21a shows the example of logging of power consumption, memory usage, network, GPU, etc. These logging were done using the scripts running as background processes on a Linux system which recorded data to InfluxDB influxdata (2024). Grafana, then, connected to influxDB for the time-series data display.

For future analysis, the dashboard in Fig. 22 shows the year plots of accumulated powers for all the meters in Fig. 2b where the trend line is shown. We analyze the activities on the period with high power usage values, for example during the end of semester period and during the summer period. The trend line suggests the increment of the power usage.

From the visualization, the recommendations for energy saving can be reducing the workloads during the summer period. This may not be directly possible during the seasonal activity in the university. Based on the billing policy PEA (2024) in Thailand, the power cost is differed based on weekdays and weekends, varying day and night. Other saving strategies may be the transfer of high workload to weekends or overnights, etc.

Based on the three-phase active power and the billing policy, we construct the estimation of the billing cost as in Fig. 24a. Figure 24b expresses the moving average of three-phase active power showing the peak consumption day. The visualization can be used for future investigation of the peak consumption and to analyze the causes. In other way, the prediction trend can suggest the billing cost which help future budget planning.

From Loeffler (2016), the 10 most popular way to minimize energy in a data center is to (1) turn off idle equipment or idle server (low utilization : below 15%) (2) use virtualization (3) use blade servers and gather storage (4) turn on power management feature of CPU to change frequency properly according to the utilization (5) use IT equipment with efficient power supply, and chain the IT equipment from electric sources (6) use efficient UPS and PDU (7) use power distribution 208V/230V (8) use good cooling system, use hot aisle and cold aisle (9) measure the energy usage in the data center from output of UPS and calculate PUE (10) prioritize the optimization of energy usage and look for the equipment that is not used.

In our scenario, we cannot move the rack nor upgrade the hardware. The possible strategy is workload management. For example, to delay running workload during the night can save the power cost. Or adjusting the temperature setting for CRAC to save power consumption.

Fig. 21
figure 21

Grafana visualization. a Computer loads b Energy monitoring

Fig. 22
figure 22

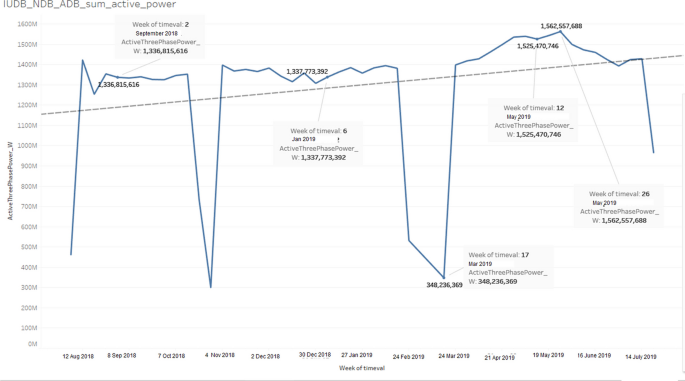

Overall power consumption analysis and trend

Fig. 23
figure 23

Grafana visualization. Zoomed three phase active power

Fig. 24
figure 24

Labview program UI a Calculation of billing cost based on active power b Moving average of active power

Comparison to other datasets

Table 5 compares the dataset presented in this paper with related ones. Most measured power consumption in the context of households in several aspects. For example, in the aspect of appliance usage, and room usage (Chavat et al. 2022; Dua and Taniskidou 2017; Candanedo et al. 2017). Some integrates the other context and environment data such as temperature, humidity, billing, etc. (Makonin et al. 2016; Candanedo et al. 2017). In the household context, all used meters data as a main data source while data from sensors were supplementary. In the data center context, CPU/GPU, memory, network power usage were considered Bazurto et al. (nd) while our dataset considered the power usage of data center based on area containing servers and IT equipment.

Table 5 Comparison of existing data sets for data centers

Future research

The future research can investigate along with the data and related directions.

  1. 1.

    One may consider integrating with other data sources such as a renewable energy to monitor the data generation. Or to integrate with a temperature dataset, using Weather Data API (OpenWeatherMap 2024; TMD 2024). The visualization can show the linkage these new data sources.

  2. 2.

    In the area of exploring the impact of IT workload management on energy consumption, one can install the profiling tools for various workload collection. Since in our real operating environment, the servers cannot be stopped and inserting the logging scripting. We have preliminary tried the tools to the server and peripherals usage and power consumption logging, eg. using RAPHL [34], to collect power consumption of CPU, memory usage, etc, using NVIDIA-SMI (NVIDIA 2024) to collect power consumption of GPU, GPU memory usage, etc. These data may be combined with the aggregate energy data for further analysis. Based on these server load data, the implementation of server provisioning such as the work in Hübotter (2021), Thein et al. (2020) is also possible.

  3. 3.

    The dataset collected can lead to the other research areas with various methods such as optimizing cooling systems based on predictive models (Afroz et al. 2022; Lei and Shao 2023; Bamdad et al. 2023).

Data availability

The python source coAQ3de for required libraries of statsmodel, numpy, sklearn, matplotlib, pmdarima, joblib. The sample 3-month data and source code are also available at The whole source code is also available at the author Github
