Investigating the performance gap between testing on real and denoised aggregates in non-intrusive load monitoring

Abstract

Prudent and meaningful performance evaluation of algorithms is essential for the progression of any research field. In the field of Non-Intrusive Load Monitoring (NILM), performance evaluation can be conducted on real-world aggregate signals, provided by smart energy meters or artificial superpositions of individual load signals (i.e., denoised aggregates). It has long been suspected that testing on these denoised aggregates provides better evaluation results mainly due to the fact that the signal is less complex. Complexity in real-world aggregate signals increases with the number of unknown/untracked loads. Although this is a known performance reporting problem, an investigation into the actual performance gap between real and denoised testing is still pending. In this paper, we examine the performance gap between testing on real-world and denoised aggregates with the aim of bringing clarity into this matter. Starting with an assessment of noise levels in datasets, we find significant differences in test cases. We give broad insights into our evaluation setup comprising three load disaggregation algorithms, two of them relying on neural network architectures. The results presented in this paper, based on studies covering three scenarios with ascending noise levels, show a strong tendency towards load disaggregation algorithms providing significantly better performance on denoised aggregate signals. A closer look at the outcome of our studies reveals that all appliance types could be subject to this phenomenon. We conclude the paper by discussing aspects that could be causing these considerable gaps between real and denoised testing in NILM.

Introduction

Effective energy management in smart grids requires a fair amount of monitoring and controlling of electrical load to achieve optimal energy utilization and, ultimately, reduce energy consumption (Gopinath et al. 2020). With regard to individual buildings, load monitoring can be implemented in an intrusive or non-intrusive fashion. The latter is often referred to as Non-Intrusive Load Monitoring (NILM) or load disaggregation. NILM, dating back to the seminal work presented in Hart (1992), comprises a set of techniques to identify active electrical appliance signals from the aggregate load signal reported by a smart meter (Salem et al. 2020).

Performance evaluation of NILM algorithms can be carried out in a noised or denoised manner, where the difference lies in the aggregate signal considered as input. Whereas noised scenarios employ signals (i.e. time series) obtained from smart meters, denoised testing scenarios consider superpositions of individual appliance signals (i.e., denoised aggregates). Figures 1 and 2 illustrate such real and denoised signals for two households found in NILM datasets. Depending on how many appliance signals are considered when deriving a denoised aggregate, there can be test scenarios in which the denoised aggregate differs considerably from its real-world counterpart, as shown in Fig. 2.

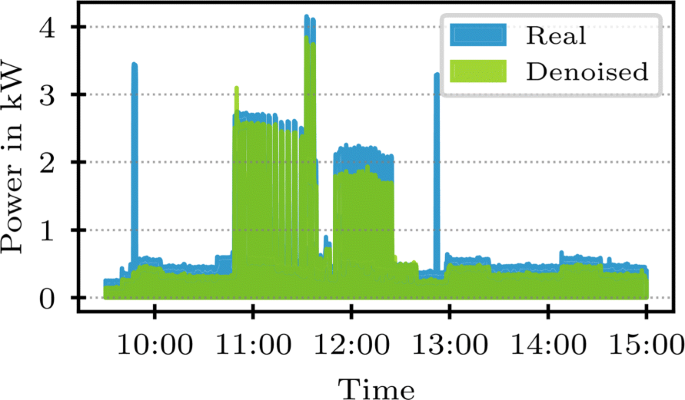

Fig. 1
figure1

Real and denoised aggregate in the case of UK-DALE house 5

Fig. 2
figure2

Real and denoised aggregate in the case of REFIT house 2

While a large proportion of contributions proposed for NILM is being evaluated following noised testing scenarios, exceptions to this unwritten rule can be observed (Wittmann et al. 2018). The problem with this matter lies in the complexity of the test setup, as denoised aggregates are suspected to pose simpler disaggregation problems (Makonin and Popowich 2015). Consequently, our hypothesis claims that the same disaggregation algorithm applied to the denoised signal version of a real-world aggregate signal results in considerably better performance, thus communicating a distorted picture of the capabilities of the presented algorithm.

This paper presents a study focusing on the difference between denoised and real-world signal testing scenarios in the context of performance evaluation in NILM. We consider data of 15 appliances extracted from three datasets. Each dataset reports an aggregate signal with additional residual noise. For testing, we select households with different levels of residual noise. We incorporate one basic and two load disaggregation approaches based on neural networks to obtain a broad understanding of whether or not noise levels of aggregate power signals impact energy estimation performance. Finally, we discuss how the disaggregation performance is affected by signal noise levels with regard to different appliance types.

Related work

Despite the possibly far-reaching implications of this aspect for NILM, relatively little is understood about the actual performance gap between real and denoised testing. In Makonin and Popowich (2015), the hypothesis of denoised testing resulting in better performance was expressed first. Further, the authors introduce a measure to assess the noise level of aggregate signals. This measure has found application in a limited number of studies, in which the noise level was reported alongside the performance of load disaggregation algorithms on real-world aggregates (Makonin et al. 2015; Zhao et al. 2018). However, no comparison to the denoised testing case has been conducted. In Klemenjak et al. (2020), the noise levels of several NILM datasets were determined. The authors report basic parameters of several NILM datasets and find that noise levels in real aggregate signals vary significantly among observed datasets.

Few attempts have been made to evaluate NILM algorithms on both, real and denoised aggregates, such as presented for the AFAMAP approach in Bonfigli et al. (2017). In subsequent work (Bonfigli et al. 2018), an improved version of denoising autoencoders for NILM has been proposed by means of comparison studies to the state of the art at that time. Although the authors have not investigated the performance gap between real and denoised, a tendency can be derived for this particular case in both contributions, confirming the motivation for the studies presented in this paper.

Assessing signal noise levels

NILM has been approached in various ways that can be categorized into event detection and energy estimation approaches (Pereira and Nunes 2018). In the following, we focus on the energy estimation viewpoint as the precursor of the event detection stage in the disaggregation process. We define NILM as the problem of generating estimates \(\left [\hat {x}_{t}^{(1)}, \dots,\hat {x}_{t}^{(M)}\right ]\) of the actual power consumption \(\left [x_{t}^{(1)}, \dots,x_{t}^{(M)}\right ]\) of M electrical appliances at time t given only the aggregated power consumption yt, where the aggregate power signal yt consists of

$$ y_{t} = \sum_{i=1}^{M}{x_{t}^{(i)}}+ \eta_{t} $$
(1)

that is M appliance-level signals \(x_{t}^{(i)}\) and a residual term ηt. The residual term comprises (measurement) noise, unmetered electrical load, and unexpected or unaccounted anomalies (Makonin and Popowich 2015). To quantify the share of the residual term in an aggregate signal, the noise-aggregate ratio NAR, defined as:

$$ \text{NAR} = \frac{\sum_{t=1}^{T}{\eta_{t}}}{\sum_{t=1}^{T}{y_{t}}} = \frac{\sum_{t=1}^{T}{|y_{t}-\sum_{i=1}^{M}{x_{t}^{(i)}}| }}{\sum_{t=1}^{T}{y_{t}}} $$
(2)

was introduced in Makonin and Popowich (2015). This ratio can be computed for any type of power signal, provided that readings of the aggregate and individual appliances are available. A NAR of 0.15 indicates that 15% of the observed power signal can be attributed to the residual term. Hence, the ratio indicates to what degree information on the aggregate’s components is available.

To get an impression of NAR levels to be expected in real-world settings, we compute this ratio for household measurements contained in the energy datasets AMPds2 (Makonin et al. 2016), COMBED (Batra et al. 2014a), ECO (Beckel et al. 2014), iAWE (Batra et al. 2013), REFIT (Murray et al. 2017), and UK-DALE (Kelly and Knottenbelt 2015a). As intended by the authors of (Makonin and Popowich 2015), we consider all submeter signals recorded during the measurement campaign to compute the NAR. These datasets were selected because of their compatibility to NILMTK, a toolkit that enables reproducible NILM experiments (Batra et al. 2014b; Batra et al. 2019). We excluded from consideration the dataset BLUED (Anderson et al. 2012) due to the lack of sub-metered power data, Tracebase (Reinhardt et al. 2012) and GREEND (Monacchi et al. 2014) due to the lack of household aggregate power data. We summarize the derived values in Table 1 in conjunction with further stats on the measurement campaign such as duration or number of submeters.

Table 1 Noise levels in NILM datasets

Generally speaking, measurement campaigns strive to record the energy consumption and other parameters of interest in households or industrial facilities over a certain time period. Though sharing this common aim, considerable differences can be observed in the way past campaigns have been conducted. As Table 1 shows, durations range from a couple of days to several years of data, which impacts the amount of appliance activations and events found in the final dataset. Further, we identify considerable variations with regard to AC power types as well as the number of submeters installed during campaigns. It should be pointed out that there seems to be a lack of consistency in the sense that not only measurement setups differ between two datasets but also within some of the campaigns considered by our comparison (e.g., UK-DALE).

As concerns the noise aggregate ratio (NAR), we observe considerable variations across datasets and households. Interestingly, the NAR ranges between a few percent, as it is the case for household 2 in the ECO dataset, and excessive 84.7% in household 5 of same dataset. Further, there are indications that the number of submeters used in the course of dataset collection can but do not necessarily have an impact on the noise level of the household’s aggregate signal since it is decisive what kind of appliances are left out during a measurement campaign (low-power appliances vs. big consumers). As concerns house 1 to house 5 in REFIT, we consistently observe moderate to high noise levels, which may be the result of the low number of submeters incorporated in the measurement campaign. On the other hand, it should be noted that the measurement campaign conducted to obtain REFIT shows remarkable consistency in the sense that the exact same number of submeters has been applied to every single household in the study and, more importantly, the same AC power type has been considered at aggregate and appliance level at every site. In contrast to that, Table 1 reveals that in the case of house 3 and 4 in UK-DALE, apparent power was recorded on aggregate level, whereas active power was considered on appliance level only. As our definition of NAR demands for the same AC power type on aggregate and submeter level, no such ratio could be computed in those cases. The same applies to all sites of the REDD (Kolter and Johnson 2011) dataset, according to the NILMTK dataset converterFootnote 1. For this reason, REDD has not been considered in this study.

Evaluation setup

To gain a comprehensive understanding of the impact of noise on the disaggregation performance of algorithms, we selected three households with ascending levels of residual noise: household 2 of the ECO dataset (Beckel et al. 2014) with a NAR of 5.9%, household 5 of the UK-DALE dataset (Kelly and Knottenbelt 2015a) with a NAR 27.5%, and household 2 of the REFIT dataset (Murray et al. 2017) with a NAR of 65.1%. This way, we incorporate one instance each for disaggregation problems with low, moderate, and high noise levels. We selected five electrical appliances for every household considering a wide range of appliance types. We extracted 244 days for ECO, 82 days for UK-DALE and 275 days for REFIT while applying a sampling interval of 10 s. Table 2 provides further information on training and test sets. The amount of data used per household was governed by availability in the case of ECO and UK-DALE, as can be learned from Table 1. We split datasets into training set, validation set, and test set. This splitting was applied to all three households. We considered the smart meter signal as present in datasets and obtained the denoised version of the aggregate by superposition of the individual appliance signals following:

$$ y_{t} = \sum_{i=1}^{M}{x_{t}^{(i)}} $$
(3)
Table 2 Details on intervals and dataset splitting

It should be noted that while deriving the denoised aggregate of a household, we considered all appliance signals available in the respective dataset. For instance, the denoised aggregate in the case of UK-DALE’s house 5 is found by superposition of 24 appliance signals, as can be learned from Table 1.

For experimental evaluations, we utilize the latest version of NILMTK. The toolkit integrates several basic benchmark algorithms as well as load disaggregation algorithms based on Deep Neural Networks (DNN). In the course of experiments, we consider the traditional CO approach and two approaches based on DNNs:

  • The Combinatorial Optimization (CO) algorithm, introduced in Hart (1992), has been used repeatedly in literature to serve as baseline (Batra et al. 2019). The CO algorithm estimates the power demand of appliances and their operational mode. Similar to the Knapsack problem (Rodriguez-Silva and Makonin 2019), estimation is performed by finding the combination of concurrently active appliances that minimizes the difference between aggregate signal and the sum of power demands.

  • Recurrent Neural Networks are a subclass of neural networks that have been developed to process time series and related sequential data (Di Pietro and Hager 2019). First proposed for NILM in Kelly and Knottenbelt (2015b), we employ the implementation presented in Krystalakos et al. (2018), which incorporates Long Short-Term Memory (LSTM) cells. Provided a sequence of aggregate readings as input, the RNN estimates the power consumption of the electrical appliance it was trained to detect for each newly observed input sample.

  • The Sequence-to-point (S2P) technique, relying on convolutional neural networks, follows a sliding window approach in which the network predicts the midpoint element of an output time window based on an input sequence consisting of aggregate power readings (Zhang et al. 2018). The basic idea behind this method is to implement a non-linear regression between input window and midpoint element, which has been applied successfully for speech and image processing (van den Oord et al. 2016). In a recent benchmarking study of NILM approaches, S2P was observed to be amongst the most advanced disaggregation techniques at that time (Reinhardt and Klemenjak 2020).

While the CO approach does not need to be parametrized, we set the number of training epochs to 25 during training of neural networks. Further, we employ an input sequence length of 49 for LSTM inspired by Krystalakos et al. (2018) and 99 for S2P as suggested in Batra et al. (2019).

In this study, we utilize two error metrics to assess the performance of load disaggregation algorithms. The first is a well-known, common metric used in signal processing, the Mean Absolute Error (MAE), defined as:

$$ \text{MAE}^{(i)} = \frac{1}{T} \cdot \sum_{t=1}^{T}{\lvert{ \hat{x}_{t}^{(i)}-x_{t}^{(i)}\rvert}} $$
(4)

where xt is the actual power consumption, \(\hat {x}_{t}\) the estimated power consumption, and T represents the number of samples. The best possible value is zero and, as we estimate the power consumption of appliances, it is measured in Watts. As second metric, we incorporate a metric defined by NILM scholars in Kolter and Jaakkola (2012), the Normalized Disaggregation Error (NDE), defined as:

$$ \text{NDE}^{(i)} = \sqrt{\frac{\sum_{t=1}^{T}{\left(\hat{x}_{t}^{(i)}-x_{t}^{(i)}\right)^{2}}}{\sum_{t=1}^{T}{\left(x_{t}^{(i)}\right)^{2}}}} $$
(5)

In contrast to the MAE, the NDE represents a dimensionless metric and, more importantly, the NDE belongs to the class of normalized metrics. This allows for fair comparisons of disaggregation performance between appliance types (Klemenjak et al. 2020).

Results

We summarize the outcome of our investigations in Table 3 for the MAE and Table 4 with regard to the NDE. For several appliances per household, we compare the disaggregation performance of CO, LSTM, and S2P when applied to the real-world aggregate signal, denoted as Real, and the denoised aggregate signal Den, respectively.

Table 3 Mean absolute error (MAE) in Watts for real and denoised testing
Table 4 Normalised disaggregation error (NDE) for real and denoised testing

In virtually all cases, we observe a strong tendency towards disaggregation algorithms providing better performance on denoised aggregate signals. In the context of error metrics such as MAE and NDE this means that the error observed on the real aggregate is larger than the error on the denoised aggregate. This holds true for almost all households and appliances considered, though some exceptions were identified: we spot a few cases in Table 3, namely the fridge and kettle in ECO as well as the dishwasher in UK-DALE showing the opposite trend for the CO algorithm. Same applies to all fridges with regard to the NDE metric, as Table 4 reports. It should be pointed out that in those cases, the performance of CO on the real-world and denoised aggregate signal shows a considerable gap when compared to LSTM and S2P. Therefore and because of CO being a trivial benchmarking algorithm, we claim that these cases can be neglected.

As concerns LSTM and S2P, we identify a single contradictory observation, namely in the case of the fridge in ECO’s household 2. In this particular case, we observed that testing on the real-world aggregate signal results in marginally better performance. One explanation for this could be the extremely low NAR in this scenario, 5.9%, and the fridge belonging to the category of appliances with a recurrent pattern (Reinhardt and Klemenjak 2020).

Having identified a clear tendency towards CO, LSTM, and S2P providing significantly better performance in the denoised signal case i.e. lower MAE and NDE, we draw our attention to the open question whether or not there exists a link between noise level and the magnitude of the performance gap between Real and Den. To investigate further in this, we define the performance gap to be the distance between the error on the real aggregate signal and the error observed signal when testing on the denoised aggregate signal:

$$ \Delta\text{MAE} = \text{MAE}_{\text{real}} - \text{MAE}_{\text{denoised}} $$
(6)
$$ \Delta\text{NDE} = \text{NDE}_{\text{real}} - \text{NDE}_{\text{denoised}} $$
(7)

We derive ΔMAE for the cases presented in Table 3 and illustrate an excerpt of found gaps in Fig. 3 for ECO, Fig. 4 for UK-DALE, and Fig. 5 for REFIT, where the focus of this discussion lies on the two approaches based on neural networks.

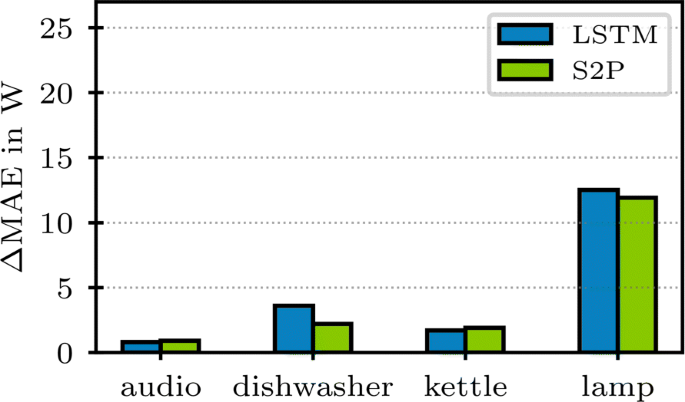

Fig. 3
figure3

Performance gap with regard to MAE for ECO house 2

Fig. 4
figure4

Performance gap with regard to MAE for UK-DALE house 5

Fig. 5
figure5

Performance gap with regard to MAE for REFIT house 2

We observe clear gaps for both NILM approaches based on neural nets, LSTM and S2P. The illustrations show that neither approach seems to be resilient to noise. This is particularly interesting as approaches relying on LSTM cells as well as sequence-to-sequence learning have received increased interest lately (Reinhardt and Klemenjak 2020; Kaselimi et al. 2019; Kaselimi et al. 2020; Mauch and Yang 2015; Wang et al. 2019). Further, we identify higher performance gaps in test cases on REFIT’s house 2 compared to house 5 of UK-DALE in this study. This is particularly apparent when comparing the performance gap for the dishwasher across households, where we measure a ΔMAE many times higher in case of REFIT. Also, we observe performance gaps twice as high for the fridge on REFIT compared to UK-DALE. The only exception to this trend represents the case of LSTM for washing machines, where the performance gap of the LSTM network is smaller on REFIT than on UK-DALE.

Nevertheless, it should be stressed that comparisons based on not-normalized metrics can, but not have to be, misleading in some cases since two appliances of the same kind (i.e., two dishwashers) may differ significantly in terms of power consumption. Furthermore, metrics are designed to measure specific aspects of algorithms and hence, considering several metrics during performance evaluation results in a broader understanding of the capabilities of algorithms.

For these reasons, we also derived performance gaps with regard to NDE, ΔNDE, for the test cases presented in Table 4 and illustrate derived gaps in Fig. 6 for UK-DALE and Fig. 7 for REFIT.

Fig. 6
figure6

Performance gap with regard to NDE for UK-DALE house 5

Fig. 7
figure7

Performance gap with regard to NDE for REFIT house 2

In the case of fridges, we observe substantially lower performance gaps on UK-DALE for both networks. We suspect that is a result of the comparably high amount of noise in REFIT 2, disaggregating the real-world aggregate signal represents a bigger challenge than in the case of the denoised counterpart, especially when estimating the power consumption of low-power household appliances such as fridges.

Interestingly, not only we observe considerable performance gaps when estimating the power consumption of low-power appliances but also for appliances with moderate or high power consumption such as dishwashers and washing machines, as can be learned from Figs. 8 and 9. In both cases, UK-DALE and REFIT, we measure the highest ΔNDE in the case of the dishwasher. A comparison of performance gaps for dishwashers in Fig. 8 reveals that while we measure similar performance gaps in UK-DALE and REFIT, the performance gap in the case of ECO is significantly smaller. We hypothesize this is the result of the marginal noise level measured in house 2 of ECO. More importantly, we observe that also in cases of marginal noise levels, an apparent difference in terms of disaggregation error can be observed between real and denoised testing in this example.

Fig. 8
figure8

Performance gap with regard to NDE for dishwashers

Fig. 9
figure9

Performance gap with regard to NDE for washing machines

A recent benchmarking study involving eight disaggregation algorithms found that S2P outperformed competing neural network architectures and concluded that S2P ranks amongst the most promising NILM approaches (Reinhardt and Klemenjak 2020). As concerns performance of NILM algorithms interpreted as disaggregation error between estimated power consumption and true power consumption of appliances, we find that S2P outperforms LSTM in 11 of 15 cases for the MAE metric and in 14 of 15 cases when the NDE metric is considered. Furthermore, in the vast majority of test runs, the S2P approach shows lower performance gaps than the network composed of LSTM cells in the sense of ΔMAE and ΔNDE.

Discussion

Insights obtained from testing on three households with considerably different NAR levels reveal that in the majority of test runs, testing on the denoised aggregate signal leads to substantially lower estimation errors and therefore, higher estimation accuracy. A few cases showing the contrary trend were observed but can be reasonably explained. As this apparent performance gap can be attributed to a variety of aspects, we suspect two of them having a decisive impact on this matter:

First, denoised aggregates are obtained by superposition of individual appliance signals. As such, they contain fewer appliance activations and consumption patterns than aggregates obtained from smart meters, respectively. Particularly when estimating the power consumption of low-power appliances, such activations have the potential to hinder load disaggregation algorithms from providing accurate power consumption estimates. Such cases were repeatedly observed during our studies on REFIT, where a NAR of 65.1% was measured. As depicted in Figs. 10 and 11, we detected several cases where concurrent operation of appliances with moderate or high power consumption (i.e. dishwasher, electric stove, or washing machine) resulted in significant deviations when estimating the power consumption of the fridge. Not only we observed such cases for the basic benchmarking algorithm CO but also for the advanced NILM approaches LSTM and S2P, which leads to the presumption that though having seen remarkable advances in the state of the art, at least a part of those algorithms may still be prone to noise levels in aggregate signals.

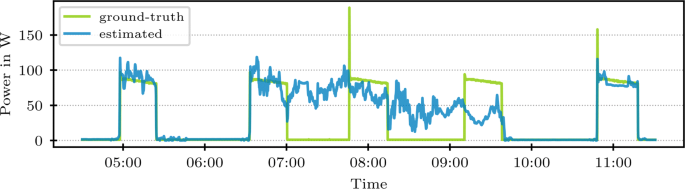

Fig. 10
figure10

An excerpt of estimates provided by S2P for the fridge in REFIT house 2 when applied to the real aggregate

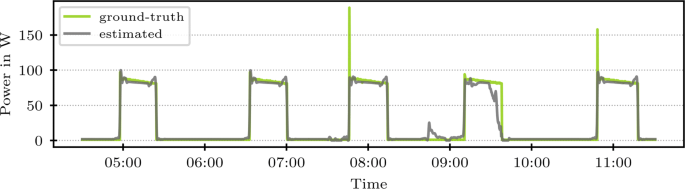

Fig. 11
figure11

An excerpt of estimates provided by S2P for the fridge in REFIT house 2 when applied to the denoised aggregate

Second, we observe a substantially higher number of false positive estimates in predictions based on real-world aggregate signals than in estimates generated from denoised aggregate signals. False positives in this context mean that the NILM algorithms predicted the appliance to consume energy at times this was not the case. Such false positives impact the outcome of performance evaluations two-fold, as they increase the disaggregation error and decrease the estimation accuracy of NILM algorithms, respectively. We observed repeatedly that in the real-world case, the number of false-positive estimates is considerably higher than in the denoised case. We presume that those false positives are the result of algorithms confusing appliances with similar power consumption levels.

Based on the insights gained in this study, we can, however, not confirm a clear link between noise level, measured in NAR, and the magnitude of the performance gap between testing on real and denoised aggregates. We suspect this is due to the fact that every load disaggregation problem bears individual challenges to load disaggregation algorithms, making a comparison between moderate and high noise levels cumbersome. Though such a positive correlation between noise level and the magnitude of the performance gap could not be confirmed by our evaluation, we demonstrated that it has to be expected that testing on denoised aggregates results in lower disaggregation errors in the majority of test runs. Yet, we would like to stress the need for further investigation into the complexity of load disaggregation problems.

Conclusions

Motivated by the use of both, real and denoised aggregates in the evaluation of NILM algorithms in related work, we have investigated the performance gap observed between artificial sums of individual signals and signals obtained from real power meters. First, we utilized a noise measure, the noise-aggregate ratio NAR, to determine the noise level of real-world aggregate signals found in energy datasets. We find that noise levels vary substantially between households. We give insights on the experimental setup employed in our studies, comprising one basic and two more advanced NILM algorithms applied to data from three households with ascending noise levels. Our results show that a significant performance gap between the real and the denoised signal testing case can be identified in virtually all evaluation runs, provided a sufficiently high noise-aggregate ratio. Though some exceptions were observed, those cases can be well explained. Hence, we claim that testing on denoised aggregate signals can lead to a distorted image of the actual capabilities of load disaggregation algorithms in some cases, and ideally, its application should be well-considered when developing algorithms for real-world settings.
