Table 1 Different plans and views
Sample | Sample plan | Description |
|---|---|---|
Example number 1 |

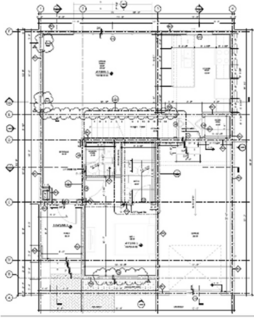

| MODEL A—SECOND FLOOR PLAN SCALE: 1/8” = 1’-0” Bedroom No. 3 is on the southeast side with two windows facing south and east The master bedroom is in the middle of the building on the south front Changing room to the left of the master bedroom on the south front Bedroom number 2 on the northwest front with a northern skylight Bedroom number 4 on the northeast side with a northern skylight |
Example number 2 |
| MODEL A—SIDE ELEVATION SCALE: 1/8” = 1’-0” |
Example number 3 |
| SCALE: 1/8” = 1’-0” MODEL A—SIDE ELEVATION |
Example number 4 |
| SCALE: 1/8” = 1’-0” MODEL A—FRONT ELEVATION The garage is on the south side The bedroom is on the south side The entrance to the house is on the left The stairs are in the middle of the house |
Example number 5 |
| SCALE: 1/8” = 1’-0” MODEL A—REAR ELEVATION |
Example number 6 |
| SCALE: 1/8” = 1’-0” MODEL A—GROUND FLOOR PLAN |
Example number7 |
| CALE: 1/8” = 1’–0” MODEL A—GROUND FLOOR PLAN The kitchen is on the northeast front The living and dining room is located on the north side The garage is on the south side The bedroom is on the south side The bathroom is located in the middle of the house The entrance to the house is on the left The stairs are in the middle of the house |
