Business ecosystem architecture development: a case study of Electric Vehicle home charging

Abstract

Due to the complexity of business ecosystems, the architecture of business ecosystems has not been well discussed in the literature, and modeling or simulation of business ecosystems has been rarely focused. Therefore, this paper proposes a business ecosystem ontology and introduces a methodology for business ecosystem architecture design. The proposed methodology includes five stages: 1) Boundary identification of a business ecosystem; 2) Identification of actors and their roles in the business ecosystem; 3) Identification of actors’ value propositions; 4) Identification of interaction between actors; 5) Verification of business ecosystem architecture design. This paper uses the Danish electricity system as an example to introduce the methodology, and use Electric Vehicle home charging as a case study to demonstrate the application of the developed methodology. The case study demonstrates that the proposed methodology is a systematic approach and can be easily applied to any ecosystem architecture design with the five stages, and the designed ecosystem architecture can represent the physical system and business. Several definitions are clarified in the paper, e.g., actor, role, interaction, ecosystem roadmap and expanded/shifted ecosystem, etc. With clear definitions, the proposed methodology provides a visualized, clear structure of behaviors and specifications for a given business ecosystem.

Introduction

Business ecosystem theories have discussed business ecosystem life cycle (Moore 1996), ecosystem roles (Iansiti and Levien 2004; Levien 2004), S-D (Service-Dominant) logic and value co-creation (Vargo and Lusch 2016). However, the architecture of the business ecosystem has not been well discussed in the literature, although the core elements, actors/roles, and interactions have been mentioned. Meanwhile, the modeling or simulation of business ecosystems has been rarely focused due to the complexity of business ecosystems (Ma 2019).

No systematic methodology available for the business ecosystem analysis and architecture design is one of the main challenges to simulate/model a business ecosystem. Especially, the majority of the literature is either case-based or has only guidelines without details. Meanwhile, the boundary of a given business ecosystem, the definitions of actors and their roles, types of interactions, especially the correlations among the above elements are missing. A business ecosystem ontology can support the business ecosystem architecture investigation, modeling and simulation.

Therefore, this paper aims to follow up the paper ‘Business Ecosystem modeling- The Hybrid of System Modeling and Ecological Modeling: An application of the smart grid’ (Ma 2019), and introduces ‘Part I- Business ecosystem architecture development’ which aims to identify a target business ecosystem and its elements (actors, roles, and interactions). A framework for business ecosystem modeling is proposed in (Ma 2019), and the proposed framework includes three parts and nine stages that combine theories from system engineering, ecology, and business ecosystem (shown in Table 1).

Table 1 The framework and steps of the business ecosystem modeling (Ma 2019)

This paper firstly discusses the related works of business ecosystem architecture. In the Methodology section, this paper uses the Danish electricity business ecosystem as an example to introduce the five stages in the proposed methodology. The application of State-of-the-Art techniques for investigating existing solutions and their business model is also introduced in the Methodology section; In the Case Study section, a case study of Electric Vehicle home charging in Denmark is introduced to demonstrate the application of the methodology. Definitions clarified in the paper and proposed methodology are summarized in the Discussion and Conclusion sections including the paper contribution and future works.

Related work of business ecosystem architecture

Manning et al. (2002) propose a general 6-step approach for business ecosystem building. Later, Papert and Pflaum (2017) present a general guideline on ecosystem building for Internet of Things (IoT) Services in Supply Chain Management. However, the two guidelines (shown in Table 2) are for practically visualizing a business ecosystem, not for the business ecosystem architecture development.

Table 2 Two guidelines for practically visualizing a business ecosystem

Compared to the guidelines proposed by (Manning et al. 2002; Papert and Pflaum 2017), other business ecosystem frameworks focus more on the focal companies’ perspective. For instance, Rong et al. (2015) develop a 6C framework (including context, cooperation, construct, configuration, capability, and change) for the understanding of IoT-based business ecosystems with six case studies.

The Business Ecosystem Architecture Modeling (TEAM) is proposed by (Wieringa et al. 2019) aims to ‘map the architecture of the ecosystem to the required technical infrastructure’, with the application of the e3-value method (https://research.e3value.com/) to model the value exchange among participants, e.g. value network of an electricity ecosystem. This framework specifically focuses on coopetition from a focal company’s perspective, and doesn’t focus on the ecosystem perspective or actors’ roles, and the interactions are not mentioned. Meanwhile, it is difficult to design a complex business ecosystem with the e3-value method due to its restriction.

The methodology of Business Ecosystem Network Analysis (MOBENA) developed in (Battistella et al. 2013) includes four analysis steps and defines three types of players: macro-classes of actors, classes/categories of actors and main players. It also classifies links (Connections Matrix) with four levels (no relation; intangible relation; tangible relation; and possible future relation). This methodology mainly focuses on the network perspective and the detailed actor, their roles and interactions are not included.

Similarly, a four-stage process for analyzing business ecosystem dynamics is presented in (Basole et al. 2015) and also focuses on the network perspective of the business ecosystem. The four stages include: boundary specification (nodes, node types, relationship types and specifying the desired analysis timeframe are determined); Metrics identification (ecosystem and node levels); Computation, analysis, and visualization (with bicentric ecosystem layout by the tabular representations); and Sensemaking and storytelling; Boundary Specification.

Four basic elements with two perspectives of the ecosystem structure are defined in (Adner 2016). The four elements include activities, actors, positions and links, and the two perspectives include ecosystem-as-affiliation and ecosystem-as-structure approaches. An ecosystem architecture is proposed in (Adner 2016), however, the ecosystem architecture is a blueprint of a software system, not an architecture overview of a business ecosystem.

Similarly, a decentralized business ecosystem model is discussed by (Radonjic-Simic and Pfisterer 2019) from the perspective of complex products and the four elements of activities, actors, positions, and links. However, it is difficult to follow the methods provided by (Adner 2016; Radonjic-Simic and Pfisterer 2019) due to the missing correlation among elements, although elements and some sub-elements (e.g three types of activities and six types of roles for actors) are introduced and defined in the ecosystem structure.

‘Links’ are described as ‘specify transfers across actors’, and ‘need not have any direct connection to the focal actor’ in (Adner 2016). Comparatively, ‘links’ are described as ‘how actors need to interact with each other’ in (Radonjic-Simic and Pfisterer 2019). However, both descriptions do not include a detailed explanation of the interaction types and contents. Some literature has used value flows to describe the interaction between actors, e.g. four types of flows (value flow, fund flow, logistics, and cooperation) are stated in (Zhang et al. 2016), but without description.

A business ecosystem modeling with the combination of natural ecosystems and multi-agent systems is proposed by (Marín et al. 2007). However, only two types of agents (supplier and customer) are proposed which can not provide a holistic understanding of the business ecosystem architecture. Similar to (Marín et al. 2007), a service ecosystem (consumers, service provider, and competition) with a multi-agent system is investigated in (Tian et al. 2008). Although the interactions among entities are introduced in (Tian et al. 2008), the detailed discussion on the roles’ interactions is missing.

Overall, the business ecosystem structure and analysis have been discussed in the literature, but no systematic approach has been proposed. A systematic approach should not only provide a guideline or visualization with specific aspects, but also be used for further ecosystem analysis and preparation of simulation and modeling. Meanwhile, although the fundamental elements of business ecosystems have been discussed in the literature, a clarification is missing, especially the correlation between elements, e.g. actors and roles, types of value flows, etc.

Methodology of business ecosystem architecture development

The proposed methodology of business ecosystem architecture includes five stages and three State-of-the-Art techniques are recommended to be applied at the early stages.

Stage 1- Boundary identification of a business ecosystem

Based on the business ecosystem definition, it is important to define the ‘area/a community’ at the beginning of the business ecosystem architecture design. An ecosystem boundary is necessary to be precisely described since the related stakeholders, their interactions may be different for different purposes. For example, energy flexibility and demand response are popularly discussed in the energy field. Many countries and associations have announced initiatives, policies, and regulations, e.g., aggregation market, tariffs for the distributed energy resources, etc. to support the execution. However, energy flexibility and demand response have two different definitions. For instance, Demand response is defined by the European Commission as “voluntary changes by end-consumers of their usual electricity use patterns—in response to market signals” (Laursen 2017). Energy flexibility in the smart grid can happen among the whole electricity system, e.g. flexibility from the production, from the market (e.g. regulating market), from the grid (large scale battery), and from the consumption side. Therefore, the ecosystem boundary should be defined according to the focuses.

The boundary of a selected business ecosystem can be defined with two dimensions:

  • Targeted domain: is defined by the primary supply chain, main business, and related markets. It aims to identify ‘what’ and ‘who’ of the business ecosystem. E.g., the electricity grid and district heating network are two different targeted domains, the business and stakeholders are different (Ma et al. 2020).

  • Cultural/geographic boundary: aims to identify ‘where’ and ‘how’ of the ecosystem. E.g. the Danish electricity grid complies with Danish regulation.

Three elements are introduced at Stage 1 for the understanding of a selected business ecosystem:

  • Primary supply chain

  • Main business

  • Markets

According to the Cambridge dictionary, the definition of the value chain is: ‘the series of companies involved in the different stages of producing a product or service that is sold to consumers, with each stage adding to its value’ and the definition of ‘supply chain’ is: ‘the system of people and organizations that are involved in getting a product from the place where it is made to customers’. Meanwhile, the definitions of ‘value’ or ‘value-added’ in the dictionary are not clear compared to ‘supply’. However, business ecosystem modeling sometimes only focuses on the in-house process, e.g. energy flexibility in commercial greenhouses (Ma et al. 2018) or buildings (Ma et al. 2017a). Therefore, this paper recommends using ‘supply chain’ instead of ‘value chain’ due to the clear definition of the stakeholders’ roles and relations, although supply chain mainly refers to the chain from the production to the end-users according to the definition. Meanwhile, the supply chain in the business ecosystem modeling should represent either a production process or a whole supply chain based on individual situations.

Quite often a selected business ecosystem includes several supply chains from a domain perspective, e.g., the sector coupling. Therefore, it is important to identify the primary supply chain in the selected business ecosystem. For instance, the business ecosystem of electric vehicle-to-grid includes two supply chains: the supply chain of electric vehicles and the supply chain of electricity. Therefore, it is important to identify the main supply chain and the secondary supply chain at this stage based on the focuses in different cases.

Supply chains only provide a linear illustration of how a product/service is supplied, the trading or financial aspect is missing. Therefore, the main business and markets are essential to be considered for a holistic understanding of a business ecosystem. For instance, in an unbundled electricity business ecosystem, e.g. the Nordic electricity business ecosystem, all trading goes through markets, e.g. the wholesale market, the regulating markets, and the retail markets (Ma et al. 2016). Many stakeholders in this business ecosystem are not shown in the supply chain and only can be illustrated from the market perspective. For example, the electricity suppliers are the retailers that sell electricity to consumers, however, it is the distribution system operators that deliver electricity to consumers.

  • Example of the Danish electricity system

The overall supply chain of the Danish electricity system is outlined in Fig. 1 which shows the electricity supply chain from the extraction of fuels to the end-use of electricity, consisting of electricity generation, transmission, distribution, and consumption. In the past, many EU countries had a boundling market regulation that allowed utilities to own all parts of the electricity supply chain, from the production, transmission, distribution to retail (Mlecnik et al. 2019). Today, the electricity sector in Denmark is liberalized as under the EU regulation, and there is an unbundling between natural monopolies (transmission and distribution network) and entities that are subject to the competition (electricity production and trade) (European Comission 2012). The transmission grids operate at 400 kV and 150/132 kV (150 and 132 kV is for DK-West and DK-East, respectively), and are owned and operated by the Danish Transmission System Operator (TSO)- Energinet. The distribution grids operate at 60/50, 10, and 0.4 kV are operated by the Distribution System Operators (DSOs).

Fig. 1
figure1

The electricity supply chain

The market framework consists of electricity trading which includes different electricity markets, market players, and market regulations. The Danish electricity market is comprised of a wholesale market and a retail market. The Danish wholesale market is an integral part of the free Nordic electricity market (shown in Fig. 2). Both Danish and EU authorities have supported liberalization to stimulate free competition in electricity production and trade. The wholesale market trades via the Nord Pool spot market, which facilitates trade between producers and traders (Energinet 2019a).

Fig. 2
figure2

Nordic electricity wholesale market structure (Ea Energy Analyses 2012)

Stage 2- Identification of actors and their roles in the business ecosystem

Stakeholders in the business ecosystem have been discussed since the introduction of the business ecosystem. The majority of the literature regarding stakeholders in the business ecosystem has focused on the types of ecosystem roles, e.g. dominator, keystone, and niche firms (Levien 2004). However, approaches for identifying stakeholders and their roles are rarely discussed.

Meanwhile, it is necessary to give clear definitions of ‘stakeholder’, ‘actor’, and ‘role’, as each field, e.g., business ecosystem, system architecture, or ecology has its way to use these terms as discussed in (Ma 2019). For clarification, this paper defines the related terms as:

  • Stakeholder: any individual, company, organization, agency, or institution who has an interest in or influence the business ecosystem, e.g., regulatory authorities.

  • Actor: type of stakeholders who directly participate in the ecosystem’s value creation process, e.g., consumers.

  • Role: actor’s responsibility in the business ecosystem, e.g., transport electricity in distribution grids.

According to these definitions, this paper uses the term ‘actor’ instead of ‘stakeholder’ in the business ecosystem architecture design, and each actor can have multiple roles (1:n). In some cases, one role can be assigned to multiple actors, but it rarely happens. The relation between role and actor is defined similarly to the definition in the SGAM framework (CEN-CENELEC-ETSI Smart Grid Coordination Group 2014), but differently from the Harmonized electricity market role model (ENTSO-E 2018), because the definitions of actors and roles in (Smart Grid Coordination Group 2014) can better represent the relations between actors and roles in a smart grid.

This paper recommends using: a) primary supply chain, b) main business and c) markets that are identified in Stage 1 to identify roles and their correlated actors in a business ecosystem (e.g. shown in Tables 3 and 4). If it is necessary, the actors and their roles involved in the secondary supply chain should be considered.

Table 3 Roles and actors in the Danish electricity supply chain
Table 4 Roles and actors in the Danish electricity markets

It is easier to identify roles first rather than actors because there are legal requirements for the responsibilities in the supply chain and markets that actors need to comply with. Through regulations, roles are assigned to actors. For instance, the responsibility for transporting electricity in and maintaining the transmission grids is called TSO, and the required responsibility for the wholesale market operation is the market operator. However, the actor who conducts both roles is the TSO that is assigned through the Nordic electricity regulations. An example of the identified main actors and their roles in the Danish electricity business ecosystem is shown in Table 5.

Table 5 The identified main actors and their roles in the Danish electricity business ecosystem

To further understand actors in an ecosystem, the population of each actor is recommended to be investigated. For instance, there is only one TSO, 48 DSOs, 59 electricity retailers, and 46 BRPs (Balance responsible parties) in Denmark (see the Appendix for the details).

Stage 3- Identification of actors’ value propositions

This stage is usually conducted parallel together with stage 2, because actors’ value propositions can be figured out once the actors and their roles are identified. One role should be correlated to one value proposition and usually together with a business model. If an actor has several value propositions, each value proposition should be assigned to a role. For instance, the actors’ value propositions can be summarized in Table 6 according to the description of the roles & responsibilities in the Danish electricity market by Energinet (who is responsible for the operation of the transmission grid and the electricity system in Denmark). The potential interactions between roles in a business ecosystem can be identified at this stage.

Table 6 Actors, roles, and their value propositions described in the Danish electricity business ecosystem (modified from (ENTSO-E 2018; Energinet 2020a))

Stage 4- Identification of interaction between actors

One key element in the business ecosystem is the interaction between actors (Moore 1996), and actors interact for value co-creation and co-evolution (Rong and Shi 2015; Tanev et al. 2010). The types of interactions have been discussed as flows of matter, energy, or information in ecology (Bousquet and Le Page 2004); information and transaction flows in a business ecosystem (Iyawa et al. 2016); information and energy flows for smart grid (Wolsink 2012). To unify the definitions and types of interaction between actors in a business ecosystem, five interaction types and four flow types are proposed in business ecosystem architecture design: goods (products & services), monetary value, information, data, and intangible value (shown in Table 7). Intangible value is defined as a type of interaction (each interaction happens between two actors/subjects), but not value flow because it does not move (via interaction) into one direction continuously.

Table 7 Flows and interactions in the business ecosystem

Table 4-Roles and actors in the Danish electricity markets shows that actors do not always directly interact with each other, but via an interface, e.g. market, platform, network, or meters. The ‘domains’ of the electricity market is defined in the harmonized electricity market role model (ENTSO-E 2018) as ‘a delimited area that is uniquely identified for a specific purpose and where energy consumption, production, or trade may be determined’. However, the term ‘domain’ is used in different ways based on different subjects. Therefore, the term ‘object’ is introduced in this paper to represent the non-actors in a business ecosystem. For instance, the objects in the electricity business ecosystem are shown in Table 8.

Table 8 The objects in the electricity business ecosystem

At Stage 3, the investigation results of the value propositions are usually together with their business models which are mainly related to the value flows. Based on the results from Stage 3 and defined interactions, flows and objects, the interactions in the Danish electricity business ecosystem are shown in Table 9. It is easier to list the actors in the interaction table based on the main supply chain.

Table 9 The interactions between actors and objects in the Danish electricity business ecosystem

Stage 5- Verification of business ecosystem architecture design

Two steps are recommended to verify the designed business ecosystem architecture:

  • Design of minimum viable ecosystem, ecosystem roadmap, and transition stages

  • Completeness checking of value flows and interactions

Design minimum viable ecosystem, ecosystem roadmap, and transition stages

Although there are three markets (day-ahead, intra-day, and regulating markets) in the Nordic electricity wholesale market (as shown in Fig. 2), only one marketplace (wholesale market) is illustrated in Table 9 because the focus of the architecture design is the Danish energy system not the Nord Pool spot market. Meanwhile, some relations, e.g., information sent by BRPs for production to DataHub, are not included. However, it does not influence the ecosystem architecture or the scope of the modeling, although the information above is not presented.

Therefore, it is necessary to only select the necessary actors, roles, and their relations for the ecosystem architecture design within the boundary identified at Stage 1. The concept of the Minimum Viable Ecosystem (MVE) can be applied to serve this purpose. MVE proposed by Adner (Adner 2012) is defined as “the smallest configuration of elements that can be brought together and still create unique commercial value”. However, due to the unclear definition of ‘value’ in this MVE definition, this paper proposes a new definition of the MVE with the consideration of the architecture perspective:

Minimum viable ecosystem

Is a completed ecosystem with minimum elements (actors, roles, and interactions), but still can serve the identified ecosystem boundary.

The MVE architecture design is usually for understanding the current (or focused) business ecosystem, and the next step is the future (or boundary expanded/shifted) business ecosystem architecture design that can reflect the progressive plannings and future scenarios. There are different actors, roles, and relations in the MVE and future (or boundary expended/shifted) business ecosystem. For instance, compared to the Danish distribution network ecosystem, several actors, roles, and interactions are added once the boundary is expanded to including the transmission grid (shown as text in blue in Table 9). One future scenario is that consumers become prosumers (producer+consumer) (Ma et al. 2015). In this future ecosystem, there will be some new actors, roles, interactions, and roles and interactions changed/moved from one actor to another actor.

Therefore, this paper proposes the concepts of ‘expanded/shifted ecosystem’, ‘ecosystem roadmap’, and ‘transition stage’ for the business ecosystem architecture design with the consideration of the future (or boundary expanded/shifted) scenarios:

Expanded/shifted ecosystem

Is a completed and minimum ecosystem that expands/shifts from the previous ecosystem (e.g., MVE) with added elements to service an expanded/shifted ecosystem boundary.

Ecosystem roadmap

Is a critical path with sequenced ecosystem transition stages for achieving the planned/future ecosystem.

Transition stage

One MVE or expanded/shifted ecosystem is designed at one transition stage. The sequence of the transition stages can be either horizontal (boundary scale) dependent on the boundary coverage or vertical (time scale) dependent on the realization terms (short, medium, and long terms).

By designing the MVE, the minimum but completed ecosystem can match the ecosystem boundary requirement, and at the same time, reduce the complexity of the ecosystem architecture. If MVE is not the final ecosystem, an ecosystem roadmap with transition stages and corresponded expanded/shifted ecosystems can serve the purpose. At each transition stage, whether the ecosystem is expanded or shifted depends on the ecosystem roadmap. The expansion is usually related to the cultural/geographic boundary, and the shifting happens when the targeted domain (one dimension of the ecosystem boundary) changes.

Completeness checking of value flows and interactions

Although the MVE architecture design can reduce the complexity, the completeness of the designed ecosystem architecture should be verified. The completeness can be verified by checking the completeness of individual value flows. A value flow is defined as ‘a specific type of value moves (via interaction) into one direction continuously’ in this paper, and the completeness of a value flow means that the value is continuous from the start points to the endpoints.

As explained at Stage 4, the intangible value is defined as a type of interaction but not value flow because it does not move into one direction continuously. However, there are actors and objects in an ecosystem, and an object, e.g. the distribution network can not make any decision. It is the actors who have the responsibility of the object (e.g., operate and maintain) to take actions. Therefore, the completeness of the intangible value interactions between objects and actors needs to be checked.

A business ecosystem mapping is recommended for visualizing and verifying the designed ecosystem architecture. It especially supports the completeness checking of the four individual value flows and the intangible value interactions between objects and actors.

State-of-the-art techniques

At Stage 3, actors’ roles, value propositions are identified. Actors and their responsibilities in the Danish energy system (electricity and district heating) are relatively well described due to the regulation. Actors and their responsibilities in other business ecosystems might be not so clearly described, e.g., building automation (Ma et al. 2017b). Therefore, state-of-the-art techniques are recommended during the whole business ecosystem architecture design, including the investigation of actors, their roles, and value propositions, and their business models in a given market.

The state-of-the-art techniques include market research, literature review, and patent searching. The literature review is conducted by searching databases for scientific articles and statistics & market reports. For instance, the databases of ACM (Association for Computing Machinery) Digital Library and IEEE (Institute of Electrical and Electronics Engineers) Xplore are two popular scientific databases for searching technologies. Market research is usually conducted by desktop research including internet search by using search engines or domain expert consultation (e.g. interviewing related companies and market reports). Market research and literature review cover the developed solutions or the proof of concept, and patent search can identify potential solutions. For instance, to investigate the patents related to the Danish electricity market, a patent search can be conducted by searching Espacenet (the European Patent Office). Market research is the most common state-of-the-art technique applied in the whole business ecosystem architecture design.

Case study and results: electric vehicle home charging in Denmark

The adoption of electric vehicles (EVs) is an important part of the Danish energy transition towards a fossil independent society. Large-scale plug-in EVs will directly impact the distribution grids. EV charging will not only create higher electricity demand but also high penetration to the grids. The corresponded business ecosystem architecture is designed to investigate the impacts of EV home charging on the distribution grids.

The market research investigation regarding the electricity supply and the distribution grids in Denmark is found by the investigation of the electricity regulation and description via related authorities’ websites and reports. The market analysis for EV charging solutions is conducted by internet searching, e.g. using the search engine Google for EV home charging providers in Denmark. For each EV home charging provider, its business model is identified by investigating its webpages. Based on the market research investigation and the proposed methodology, the business ecosystem architecture is developed through the following five stages:

Stage 1- Boundary identification of the business ecosystem

EV charging can happen at charging stations, parking spaces, and homes. The impacts of different EV charging approaches on the electricity grids are different. To reduce the complexity, only EV charging at home is considered in this case study. Although plenty of literature has discussed the potentials of Viechle-to-Grid (EV as batteries to be recharged back to the grid), the market potentials and feasibility are unclear. Therefore, only EV charging is considered in this case.

There are two supply chains related to EV home charging: electricity supply and EV charging. The main purpose of this case study is to investigate how the distribution network is impacted by EV home charging. Therefore, the primary supply chain is the electricity supply in the distribution grid, and the secondary supply chain is the EV home charging.

There are several markets and businesses related to this business ecosystem: electricity retail market, business for EV sales and EV charging box sales, and EV home charging. Because EV and EV charging box sales are one-time business and not strongly related to the main purpose of the case study, these two businesses are disregarded.

Stage 2- Identification of actors and their roles in the business ecosystem

The related actors and roles for the electricity supply chain in the distribution grid are similar to Table 9, but some actors and roles that are not directly related to the case are excluded. Related actors and their roles for the EV home charging energy ecosystem are shown in Table 10. The list of EV suppliers (bilmagasinet.dk 2019) and charging-box suppliers in Denmark is shown in Table 11 based on market research.

Table 10 The related actors and their roles in the Danish EV home charging business ecosystem
Table 11 The list of EV suppliers and charging-box suppliers in Denmark

Stage 3- Identification of actors’ value propositions

This case study only focuses on EV home charging, therefore, only charging box suppliers’ value propositions and business models are included (not EV suppliers). Based on market research, the charging-box suppliers’ value propositions and business models for EV home charging in Denmark are shown in Table 12. Meanwhile, four business models are founded for EV home charging in Denmark:

Table 12 EV home charging-box suppliers’ value proposition and business models in Denmark

One-time purchase

EV owners purchase charging boxes from EV suppliers or retail stores; EV owners pay electricity suppliers the electricity bill including electricity consumed by EV charging.

In this business model, charging boxes are provided by EV suppliers such as Tesla that can ensure charging boxes follow the specific EV standards. Tesla, for instance, uses a different charger compared to other EVs. However, charging boxes are not usually included in EV purchases. In Denmark, the electricity consumed for EV charging is usually paid as part of the electricity bill to electricity suppliers. A similar business model applies to buy charging-boxes from retail stores like Power, Bilka, Thansen, etc.

Renting

EV owners rent charging boxes from charging box suppliers; EV owners pay electricity suppliers the electricity bill including electricity consumed by EV charging; EV owners receive a reimbursement from charging box suppliers.

To compete with the business model of one-time purchase, charging box suppliers provide a reimbursement of 1.1 DKK/kWh to EV owners. This reimbursement is what charging-box suppliers receive from the government. Due to Danish regulation, electricity used for specific business processes (EV charging is included) can receive a reimbursement of 1.1 DKK/kWh until 2021 (skat.dk 2020). Charging box suppliers own and maintain charging boxes, claim EV charging via them is a ‘business process’, therefore, can receive this reimbursement.

Subscription

EV owners pay a subscription to charging box suppliers for renting charging boxes at home, limited or unlimited EV charging at all charging boxes and stations owned by the charging-box suppliers; EV owners pay electricity suppliers the electricity bill including electricity consumed by EV charging; EV owners receive a refund with a fixed rate from charging-box suppliers.

In this business model, some charging-box suppliers have a capacity limitation (the amount of electricity that can be used for charging) but some have not. At home, charging boxes are installed behind the meter points operated by DSOs, therefore, EV owners have to pay the electricity suppliers the electricity bill including the normal household electricity consumption and the EV charging consumption. To avoid EV owners paying twice for EV charging, EV owners receive a fixed refund per kWh (for the electricity consumed by EV charging) from the charging box suppliers.

V2G

EV owners can participate in frequency reserves via a V2G platform.

This business model has been demonstrated in a pilot study in Denmark. A company called Nuvve offers charging boxes and a V2G platform, and has utilized V2G to participate in the frequency market. Their concept has been successfully tested with some EVs in the Parker project (Andersen et al. 2019). However, only some EVs are ready for V2G (e.g., Nissan LEAF (2014MY and newer), Nissan e-NV200, Mitsubishi iMieV, Mitsubishi Outlander PHEV) (Nuvve 2020). The V2G platform acts as an aggregator that can trade in the frequency market through a BRP (Andersen et al. 2019).

Stage 4- Identification of interaction between actors

Based on the references found in market research analysis, the interactions between actors and objects in the Danish EV home charging minimum viable business ecosystem are shown in Table 13.

Table 13 The interactions between actors and objects in Danish EV home charging minimum viable business ecosystem

Stage 5- Verification of business ecosystem architecture design

Design of minimum viable ecosystem, ecosystem roadmap, and transition stages

Although four business models for EV home charging are found, the scenario of participation in frequency reserves is not the preliminary focus in this case study, and it can be considered as an expanded ecosystem. Among the other three business models, the business model - subscription is the most popular one in Denmark, and it will continuously be the most popular one in near future. Therefore, the minimum viable ecosystem is designed based on this business model.

Completeness checking of value flows and interactions

Based on Table 13, the EV home charging ecosystem mapping is shown in Fig. 3. This ecosystem map is created with a web-based tool-Ecosystem Map Generator (https://ecosystemmapgenerator.sdu.dk/). The completeness of the four value flows and the intangible value interactions are checked by visualizing the individual flows and intangible value interactions as shown in Figs. 4, 5, 6, 7 and 8.

  • The goods flow (shown in Fig. 4) includes EV charging electricity supply flow (Start point: distribution system; Endpoints: EV) and electricity supply flow (Start point: distribution system; Endpoints: electricity consumer).

  • The monetary flow (shown in Fig. 5) includes EV charging monetary flow (Start point: EV owner and service provider (due to the specific case of reimbursement); Endpoint: service provider) and electricity monetary flow (Start point: electricity consumer; Endpoint: TSO and DSO).

  • The data flow (shown in Fig. 6) includes EV charging data flow (Start points: charging point; Endpoint: service provider) and electricity consumption data flow (Start points: charging point and electricity consumer; Endpoint: electricity retailer).

  • The information flow (shown in Fig. 7) includes EV charging information flow (Start point: EV owner; Endpoint: EV) and tariff information flow (Start point: TSO and DSO; Electricity consumer).

  • The intangible interactions (shown in Fig. 8) include 6 intangible interactions (5 from an actor to an object, and 1 from an actor to another actor) shown in Tables 14 and 15.

Fig. 3
figure3

The EV home charging ecosystem mapping

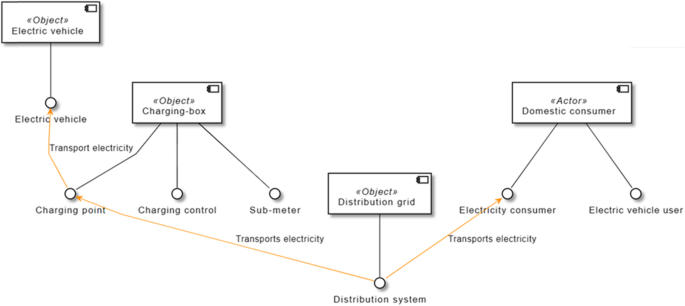

Fig. 4
figure4

The goods flow in the EV home charging ecosystem

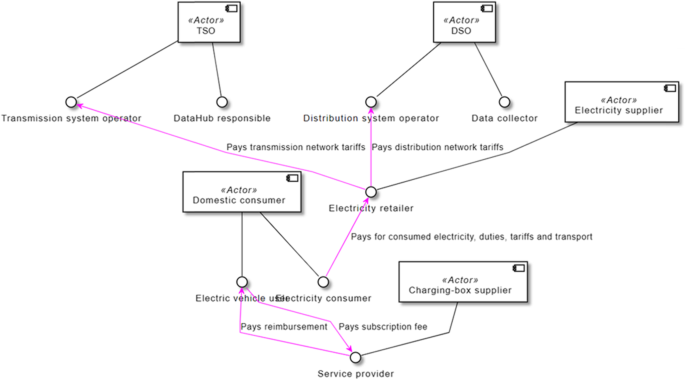

Fig. 5
figure5

The monetary flow in the EV home charging ecosystem

Fig. 6
figure6

The data flow in the EV home charging ecosystem

Fig. 7
figure7

The information flow in the EV home charging ecosystem

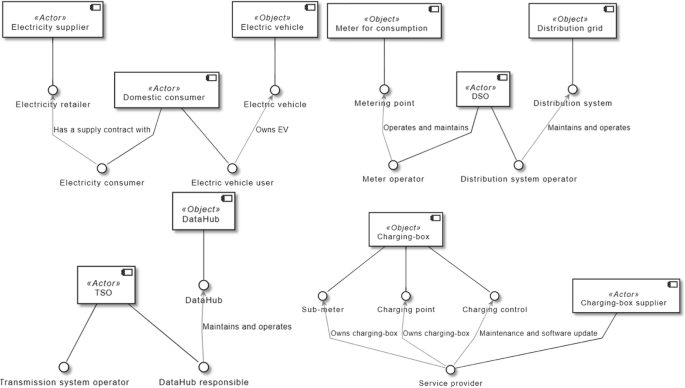

Fig. 8
figure8

The intangible interactions in the EV home charging ecosystem

Table 14 Six intangible interactions in the EV home charging ecosystem
Table 15 The five-stage business ecosystem architecture design approach with a detailed explanation

The results above confirm that there are start and end points for the four flows and the flows are continuous without any broken links. Meanwhile, each object has an intangible value interaction with an actor. Therefore, the designed ecosystem architecture can be verified.

Discussions

Ontology is a domain-specific, formal, explicit specification that supports the process in agreement with all parties (Ma et al. 2019). Especially, a business ecosystem involves many actors and roles that require an explicit specification and process. Therefore, several definitions are clarified in the paper:

  • Ecosystem architecture: illustrate the design and structure of a business ecosystem that actors create values (value proposition) and interact with others (business models) to complete four value flows within a defined ecosystem boundary.

  • Minimum Viable Ecosystem: is a completed ecosystem with minimum elements (actors, roles, and interactions), but still can serve the identified ecosystem boundary.

  • Expanded/shifted ecosystem: is a completed and minimum ecosystem that expands/shifts from the previous ecosystem (e.g., MVE) with added elements to service an expanded/shifted ecosystem boundary.

  • Ecosystem roadmap: is a critical path with sequenced ecosystem transition stages for achieving the planned/future ecosystem.

  • Transition stage: One MVE or expanded/shifted ecosystem is designed at one transition stage. The sequence of the transition stages can be either horizontal (boundary scale) dependent on the boundary coverage or vertical (time scale) dependent on the realization terms (short, medium, and long terms).

  • Ecosystem boundary: includes two dimensions of the targeted domain and cultural/geographic boundary.

    • Targeted domain: is defined by the primary supply chain, main business, and related markets. It aims to identify ‘what’ and ‘who’ of the business ecosystem.

    • Cultural/geographic boundary: identifies ‘where’ and ‘how’ of the business ecosystem.

  • Stakeholder: any individual, company, organization, agency, or institution who has an interest in or influence the business ecosystem

  • Actor: type of stakeholders who directly participate in the ecosystem’s value creation process

  • Role: actor’s responsibility in the business ecosystem

  • Value flow: a specific type of value moves (via interaction) into one direction continuously

  • Interaction: communication between two actors/objects for a type of value co-creation. The five values are:

    • Value of goods: the basic products of an economic system that consist of tangible consumable items (products) and tasks performed by individuals (service).

    • Monetary value: the amount of value an item or a service has in relation to if it is sold for cash to a buyer.

    • Value of information: data that has been processed, organized, structured or presented to make it useful in a given context.

    • Value of data: raw, unorganized measurements and facts that need to be processed to become useful.

    • Intangible value: something that exists but cannot be exactly described, or given an exact value.

The developed business ecosystem architecture not only can illustrate involved actors, roles and interactions, but also the types and content of the interactions. In the proposed methodology, one interaction is related to two roles, not actors directly. It is because roles/responsibilities are usually defined by e.g., regulations, especially in the energy sector, and this way can clearly illustrate why there is a relationship between two actors; secondly, this way can make the business ecosystem architecture more flexible. When actors or roles change in a business ecosystem, interactions can be moved or changed without influence other roles for the assigned actors and other actors. Meanwhile, one interaction only has one direction (from a role to another role), because value flows have directions, and the actor who supplies goods to consumers is not always the actor who gets the payment directly from consumers. It is common in the supply chain domain, but not in the business ecosystem domain.

The Danish electricity distribution and transmission networks are used as examples to explain the methodology, the case study of EV home charging follows the five steps and is an expanded ecosystem from the distribution network ecosystem. It demonstrates that the architecture design for the expanded/shifted ecosystems can be much faster and easier once the MVE is developed.

An ecosystem map generator is used in the case study for visualizing the developed business ecosystem architecture and investigating the four flows and intangible value interactions. Since there are two supply chains (electricity supply and EV charging) in the EV home charging ecosystem, each type of value flow includes two sub-flows that represent the two supply chains. It also supports the verification of the designed ecosystem architecture.

Compared to TOGAF (The Open Group Architecture Framework) (The Open Group 2020) that focuses on the focal organization perspective and has no definition or description of value types between businesses or enterprises, the proposed methodology is a systematic approach and the designed ecosystem architectures can represent the physical systems and businesses, and their interactions from an ecosystem perspective.

Two model frameworks in the smart grid domain that are popularly used in Europe are the harmonized electricity market role model (ENTSO-E 2018) and the SGAM (Smart Grids Architecture Model) framework (Smart Grid Coordination Group 2012). The harmonized electricity market role model mainly focuses on the market and IT perspectives to enable the common understanding among market participants from different countries via a common IT terminology for information exchange. The SGAM framework presents the design of the smart grid from an architectural viewpoint. Although these two model frameworks include the business aspect, the main focus is still the technical requirements and only in the smart grid domain. Comparatively, the proposed methodology provides an ontology that links business, system, modeling and simulation.

Conclusions

This paper introduces a five-stage methodology for design the business ecosystem architecture with a detailed explanation and a case study of EV home charging. The case study demonstrates that the proposed methodology is a systematic approach and can be easily applied to any ecosystem architecture design with the five stages. Especially with the three State-of-the-Art techniques (market research, literature review, and patent search), the designed ecosystem architecture can represent the physical system and business.

The introduced five-stage methodology (shown in Table 15) can facilitate the design of a business ecosystem architecture, and identify the elements (actors, roles, and interaction) in the targeted business ecosystem. The developed business ecosystem architecture is the foundation for Part II Factor analysis (in Table 1) that investigates influential factors and their impact on elements and potential changes in a business ecosystem. The result will also be the input to Part III-Ecosystem simulation and reconfiguration (in Table 1). There are several types of modeling, e.g. visual, mathematical, and computational modeling. Computational agent-based modeling (e.g., (Christensen et al. 2019) is recommended to investigate the dynamics and reconfiguration of a business ecosystem.

Contributions

As stated in (Ma 2019), there is little literature on the modeling aspect of the business ecosystem. With clear definitions, the proposed methodology for the ecosystem architecture design provides a visualized, clear structure of behaviors and specifications for a given business ecosystem. Compared to classic system architecture development approaches that mainly aim to provide a guideline, e.g. TOGAF (The Open Group Architecture Framework) (The Open Group 2020) and DoDAF (the Department of Defence Architecture Framework) (U.S. Department of Defense 2010), the proposed methodology systematically introduces how to conduct the business ecosystem architecture design step by step.

The proposed methodology not only decodes the process to configure roles and actors, but also interactions in a business ecosystem. No literature has explicitly introduced how actors interact in a business ecosystem, although some literature has introduced value flows in a business ecosystem. Five types of interactions in a business ecosystem are defined in this paper to illustrate the value and the value direction among actors. Interactions are assigned to roles, not actors to represent regulatory responsibilities and ecosystem reconfiguration flexibility.

As discussed in (Ma 2019), a domain ontology is important that defines various kinds of objects, properties, and relations. Little literature has mentioned ontology design for business ecosystem modeling, although ontologies are known to be important in intelligent system development for modeling interoperability, composition, and information exchange at the semantic level. Therefore, the proposed ontology for business ecosystem modeling fills this gap.

This methodology is also highly relevant for practitioners and decision-makers, especially for reflecting on the adoption and implementation of new technologies.

Future works

This paper mainly introduces the methodology for the business ecosystem architecture design, and the next step is to introduce Part III- Ecosystem simulation and reconfiguration. A multi-agent based simulation will be developed and a methodology for transforming the designed business ecosystem architecture to a business ecosystem digital twin will be introduced. The case study of the EV home charging ecosystem will be implemented to investigate the impacts of EV home charging on the distribution grids in Denmark.

The web-based tool-Ecosystem Map Generator (https://ecosystemmapgenerator.sdu.dk/) can facilitate the majority of the stages in the proposed methodology but except Stage 1. Meanwhile, the visualization of the ecosystem architecture can not illustrate the supply chains. Therefore, it is necessary to improve some functionalities in the tool.

Availability of data and materials

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

Abbreviations

EU:

European Union

DK:

Denmark

TSO:

Transmission System Operator

DSOs:

Distribution System Operators

SKAT:

Central Danish tax administration

MVE:

Minimum Viable Ecosystem

BRP:

Balance responsible party

ACM:

Association for Computing Machinery

EV:

Electric Vehicle

DKK:

Danish Kroner

V2G:

Vehicle-to-Grid

TOGAF:

The Open Group Architecture Framework

DoDAF:

The Department of Defence Architecture Framework)

References

  1. Adner R. The wide lens: a new strategy for innovation: 2012. Penguin.com

    Google Scholar

  2. Adner R (2016) Ecosystem as structure: an actionable construct for strategy. J Manag 43(1):39–58

    Google Scholar

  3. Andersen PB, Toghroljerdi SH, Sørensen TM, Christensen BE, JCML H, Zecchino A (2019) The parker project - final report

    Google Scholar

  4. Basole RC, Russell MG, Huhtamäki J, Rubens N, Still K, Park H (2015) Understanding business ecosystem dynamics: a data-driven approach. ACM Trans Manage Inf Syst 6(2):Article 6

    Article  Google Scholar

  5. Battistella C, Colucci K, De Toni AF, Nonino F (2013) Methodology of business ecosystems network analysis: a case study in Telecom Italia Future Centre. Technol Forecast Soc Chang 80(6):1194–1210. https://doi.org/10.1016/j.techfore.2012.11.002

    Article  Google Scholar

  6. Bilka. Blaupunkt Ladeboks til elbiler AWB1P32AT2NC 2020 [Available from: https://www.bilka.dk/elektronik/batterier/blaupunkt-ladeboks-til-elbiler-awb1p32at2nc/p/100491230?=https://www.bilka.dk/elektronik/batterier/blaupunkt-ladeboks-til-elbiler-awb1p32at2nc/p/100491230?]

    Google Scholar

  7. bilmagasinet.dk. Oversigt over elbiler på det danske marked i 2019 2019 [Available from: https://bilmagasinet.dk/guides/elbiler-paa-det-danske-marked]

    Google Scholar

  8. Bousquet F, Le Page C (2004) Multi-agent simulations and ecosystem management: a review. Ecol Model 176(3):313–332. https://doi.org/10.1016/j.ecolmodel.2004.01.011

    Article  Google Scholar

  9. Christensen K, Ma Z, Værbak M, Demazeau Y, Jørgensen BN (2019) Agent-based decision making for adoption of smart energy solutions. In: IV International Congress of Research in Sciences and Humanities Science and Humanities International Research Conference (SHIRCON 2019). IEEE, Lima

    Google Scholar

  10. Clever. Let opladning til din elbil 2020a [Available from: https://clever.dk/produkter/]

    Google Scholar

  11. Clever. Hvordan fungerer strømafregningen for ladeboksen? 2020b [Available from: https://clever.dk/opladning-hjemme-og-paa-farten/tilbagebetaling/]

    Google Scholar

  12. Dansk Energi. Find elnetselskab 2021 [Available from: https://www.danskenergi.dk/vejledning/nettilslutning/find-netselskab]

    Google Scholar

  13. E.ON. Strøm til din elbil 2020 [Available from: https://www.eon.dk/privat/strom-til-din-elbil.html]

    Google Scholar

  14. Ea Energy Analyses. The Nordic electricity market and how it can be improved. 2012

    Google Scholar

  15. EL PRIS.DK. Elleverandører og mæglere i Danmark 2021 [Available from: https://elpris.dk/#/article/liste_elhandlere_og_elmaeglere]

    Google Scholar

  16. Energinet. Udvikling af rammer for regulerkraft 2009 [Available from: http://www.ft.dk/samling/20091/almdel/epu/bilag/336/874447.pdf]

    Google Scholar

  17. Energinet. Regulation C1 - Terms of balance responsibility. 2011

    Google Scholar

  18. Energinet. Forretningsprocesser for det danske elmarked. 2018

    Google Scholar

  19. Energinet. Introduktion til elmarkedet - Kort introduktion til engros- og detailmarkedet. 2019a

    Google Scholar

  20. Energinet. The Danish Electricity Retail Market - Introduction to Datahub and the Danish supplier-centric model. 2019b

    Google Scholar

  21. Energinet. Forskrift C2 - Balancemarked og balanceafregning. 2019c

    Google Scholar

  22. Energinet. Roller og opgaver på elmarkedet 2020a [Available from: https://energinet.dk/El/Elmarkedet/Roller-paa-elmarkedet]

    Google Scholar

  23. Energinet. What is the purpose of Datahub 2020b [Available from: https://en.energinet.dk/Electricity/DataHub#Documents]

    Google Scholar

  24. Energinet. Forskrift D1 - Afregningsmåling. 2020c

    Google Scholar

  25. Energinet. Tariffer og gebyrer 2020d [Available from: https://energinet.dk/El/Elmarkedet/Tariffer]

    Google Scholar

  26. Energinet. Roles & Responsibilities 2021 [Available from: https://en.energinet.dk/Electricity/New-player/Roles-and-responsibilities]

    Google Scholar

  27. ENTSO-E. The harmonised electricity market role model. 2018

    Google Scholar

  28. European Comission. Energy and environment - Overview 2012 [Available from: https://ec.europa.eu/competition/sectors/energy/overview_en.html]

    Google Scholar

  29. EVSE.dk. Lej en kvalitets ladeboks på abonnement, og få afgiften tilbage 2020 [Available from: https://www.evse.dk/ladebokse-med-abonnement/]

    Google Scholar

  30. FDM. FDM Ladeboks til elbil og plugin hybrid 2020 [Available from: https://fdm.dk/vi-tilbyder/fdm-ladeboks-til-elbil-plugin-hybrid]

    Google Scholar

  31. Føtex. Blaupunkt Ladeboks til elbiler AWB1P32AT2NC 2020 [Available from: https://www.foetex.dk/elektronik/batterier/blaupunkt-ladeboks-til-elbiler-awb1p32at2nc/p/100491230]

    Google Scholar

  32. Iansiti M, Levien R (2004) Strategy as ecology. Harv Bus Rev 82(3):68–78

    Google Scholar

  33. Iyawa GE, Herselman M, Botha A (2016) Digital health innovation ecosystems: from systematic literature review to conceptual framework. Proc Comput Sci 100:244–252. https://doi.org/10.1016/j.procs.2016.09.149

    Article  Google Scholar

  34. Jensen LO. Det Danske Elmarked 2010 [Available from: https://www.experimentarium.dk/klima/det-danske-elmarked/]

    Google Scholar

  35. ladertilelbil.dk. Hvad du bør tænke på, før du køber en lader til elbil 2020 [Available from: https://ladertilelbil.dk/]

    Google Scholar

  36. Laursen T. Elbiler arbejder for elnettet, når de holder stille: Energinet.dk; 2017 [Available from: https://energinet.dk/Om-os/Historier-fra-Synergi/Elbiler-arbejder-for-elnettet-nar-de-holder-stille]

    Google Scholar

  37. Levien R (2004) The keystone advantage: what the new dynamics of business ecosystems mean for strategy, innovation, and sustainability. Harvard business school press, Cambridge

    Google Scholar

  38. Ma Z (2019) Business ecosystem modeling - the hybrid of system modeling and ecological modeling: an application of the smart grid. Energy Inf 2(1). https://doi.org/10.1186/s42162-019-0100-4

  39. Ma Z, Asmussen A, Jørgensen B (2018) Industrial consumers’ smart grid adoption: influential factors and participation phases. Energies. 11(1):182. https://doi.org/10.3390/en11010182

    Article  Google Scholar

  40. Ma Z, Asmussen A, Jørgensen BN (2015) Industrial consumers' acceptance to the smart grid solutions: case studies from Denmark. Smart Grid Technologies - Asia (ISGT ASIA). In: 2015 IEEE Innovative

    Google Scholar

  41. Ma Z, Billanes JD, Jørgensen BN (2017b) A business ecosystem driven market analysis: the bright green building market potential. In: The 1st Annual International Conference of the IEEE Technology and Engineering Management Society. IEEE, Santa Clara

    Google Scholar

  42. Ma Z, Billanes JD, Kjærgaard MB, Jørgensen BN (2017a) Energy flexibility in retail buildings: from a business ecosystem perspective. In: 2017 14th International Conference on the European Energy Market (EEM). IEEE, Dresden

    Google Scholar

  43. Ma Z, Knotzer A, Billanes JD, Jørgensen BN (2020) A literature review of energy flexibility in district heating with a survey of the stakeholders’ participation. Renew Sust Energ Rev 123:109750. https://doi.org/10.1016/j.rser.2020.109750

    Article  Google Scholar

  44. Ma Z, Prljaca Z, Jørgensen BN (2016) The international electricity market infrastructure-insight from the nordic electricity market. In: 2016 13th International Conference on the European Energy Market (EEM), IEEE, Porto, Portugal, pp. 1–5. https://doi.org/10.1109/EEM.2016.7521314

  45. Ma Z, Schultz MJ, Christensen K, Værbak M, Demazeau Y, Jørgensen BN (2019) The application of ontologies in multi-agent systems in the energy sector: a scoping review. Energies. 12(16):3200. https://doi.org/10.3390/en12163200

    Article  Google Scholar

  46. Manning B, Runge B, Thorne C, Moore G (2002) Demand driven: 6 steps to building an ecosystem of demand for your business. McGraw-Hill Companies, New York

    Google Scholar

  47. Marín CA, Stalker I, Mehandjiev N (2007) Business ecosystem modelling: combining natural ecosystems and multi-agent systems. cooperative information agents XI. Springer Berlin Heidelberg, Berlin, Heidelberg

  48. Mlecnik E, Parker J, Ma Z, Corchero C, Knotzer A, Pernetti R (2019) Policy challenges for the development of energy flexibility services. Energy Policy 111147. https://doi.org/10.1016/j.enpol.2019.111147

  49. Moore JF (1996) The death of competition: leadership and strategy in the age of business ecosystems. Harper Paperbacks, New York, U.S. pp 297

  50. Nuvve. Danmark 2020 [Available from: https://nuvve.com/denmark/]

    Google Scholar

  51. Papert M, Pflaum A (2017) Development of an ecosystem model for the realization of internet of things (IoT) services in supply chain management. Electron Mark 27(2):175–189. https://doi.org/10.1007/s12525-017-0251-8

    Article  Google Scholar

  52. Power. EASEE home opladningsstation sort 2020 [Available from: https://www.power.dk/hus-og-fritid/elbillader/ladestationer/easee-home-opladningsstation-sort/p-1043661/]

    Google Scholar

  53. Proshop. Webasto Pure 22 kW Type 2 Black Edition 2020 [Available from: https://www.proshop.dk/Elbil-Ladere/Webasto-Pure-22-kW-Type-2-Black-Edition/2827465]

    Google Scholar

  54. Radonjic-Simic M, Pfisterer D (2019) A decentralized business ecosystem model for complex products. In: Patnaik S, Yang X-S, Tavana M, Popentiu-Vlădicescu F, Qiao F (eds) Digital business: business algorithms, cloud computing and data engineering. Springer International Publishing, Cham, pp 23–52. https://doi.org/10.1007/978-3-319-93940-7_2

    Chapter  Google Scholar

  55. Rong K, Hu G, Lin Y, Shi Y, Guo L (2015) Understanding business ecosystem using a 6C framework in internet-of-things-based sectors. Int J Prod Econ 159:41–55. https://doi.org/10.1016/j.ijpe.2014.09.003

    Article  Google Scholar

  56. Rong K, Shi Y (2015) Business ecosystems: constructs, configurations, and the nurturing process, 1st edn. Palgrave Macmillan, UK, p 263

    Book  Google Scholar

  57. skat.dk. E.A.4.6.3.2 Godtgørelse af afgift af elektricitet 2020 [Available from: https://skat.dk/skat.aspx?oid=2062223]

    Google Scholar

  58. Skovmose P. Elsystemet i Danmark: experimentarium; 2010 [Available from: https://www.experimentarium.dk/klima/elsystemet-i-danmark/]

    Google Scholar

  59. Smart Grid Coordination Group (2012). Smart Grid Reference Architecture; Technical Report; CEN-CENELEC-ETSI: Brussels, Belgium

  60. Smart Grid Coordination Group (2014) Document for the M/490 Mandate: Smart Grids Methodology and New Applications. Technical Report; CEN-CENELEC-ETSI: Brussels, Belgium

  61. Sperto. Danmarks åbne ladenet 2020 [Available from: https://www.sperto.dk/]

    Google Scholar

  62. Tanev S, Thomsen MS, Ma Z (2010) Value co-creation: from an emerging paradigm to the next practices of innovation. Proceedings of the 3rd ISPIM Innovation Symposium, Quebec City (Canada). In Host Publication ISPIM

  63. Tesla. Support 2020 [Available from: https://www.tesla.com/da_DK/support/home-charging-installation]

    Google Scholar

  64. Thansen. Væglader EV Type 2 32A 1 fase 6M 2020 [Available from: https://www.thansen.dk/bil/udstyr/eludstyr/ev-ladekabel-til-elbil/ev-vaeglader-mode-c-for-bil-m-mode-3-kabe/vaeglader-ev-type-2-32a-1-fase-6m/n-236539181/pn-237359935/?gclid=CjwKCAiAy9jyBRA6EiwAeclQhJpvRAhik7Xj8RQwaQaPpo-PKRe54rVoTChA5t8kyG6aJ_cz6xjDOhoC6lAQAvD_BwE&gclsrc=aw.ds]

    Google Scholar

  65. The Open Group. The TOGAF® Standard, Version 9.2 Overview 2020 [Available from: https://www.opengroup.org/togaf]

    Google Scholar

  66. thecharger.dk. Easee Home Ladestation - 22kW - 32A - Type 2 2020 [Available from: https://thecharger.dk/easee-home-ladestation-22kw-32a-type-2]

    Google Scholar

  67. Tian CH, Ray BK, Lee J, Cao R, Ding W (2008) BEAM: a framework for business ecosystem analysis and modeling. IBM Syst J 47(1):101–114. https://doi.org/10.1147/sj.471.0101

    Article  Google Scholar

  68. True Energy. Intelligent el - Klimavenligt og billigere 2020 [Available from: https://www.trueenergy.dk/]

    Google Scholar

  69. U.S. Department of Defense (2010) The DoDAF Architecture Framework Version 2.02. U.S. Department of Defense, Washington, D.C. U.S. [Available from: https://dodcio.defense.gov/Library/DoD-Architecture-Framework/]

  70. Vargo SL, Lusch RF (2016) Institutions and axioms: an extension and update of service-dominant logic. J Acad Mark Sci 44(1):5–23. https://doi.org/10.1007/s11747-015-0456-3

    Article  Google Scholar

  71. Wieringa RJ, Engelsman W, Gordijn J, Ionita D (2019) A business ecosystem architecture modeling framework. In: 2019 IEEE 21st Conference on Business Informatics (CBI)

    Google Scholar

  72. Wolsink M (2012) The research agenda on social acceptance of distributed generation in smart grids: renewable as common pool resources. Renew Sust Energ Rev 16(1):822–835. https://doi.org/10.1016/j.rser.2011.09.006

    Article  Google Scholar

  73. Zhang M, Guo Z, Zheng H, Zuo W (2016) Research on the innovation of business ecosystem model in China's online food reservation market at sharing economic era. WHICEB

Download references

Acknowledgments

This study was conducted as part of the Flexible Energy Denmark project (https://www.flexibleenergydenmark.dk/).

Funding

This study was conducted as part of the Flexible Energy Denmark project (https://www.flexibleenergydenmark.dk/).

Author information

Affiliations

Authors

Contributions

ZM carried out the first draft of the paper, KC contributed to the case study section, and BNJ contributed to the ideas and participated in the paper revision. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Zheng Ma.

Ethics declarations

Ethics approval

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix

Appendix

Electricity retailers in Denmark

In the Danish electricity retail market, consumers are able to freely choose electricity retailers in Denmark. So far, there are around 59 electricity retailers in Denmark (EL PRIS.DK 2021) (shown in Table 16 below), and there is no significant price difference among the existing electricity retailers.

Table 16 Electricity Retailers in Denmark

DSOs in Denmark

The distribution system operator owns the network between the transmission grid and the consumer. A DSO has a monopoly on transporting electricity in its geographically demarcated grid area. So far, there are around 48 DSOs in Denmark (Dansk Energi 2021) (shown in Table 17 below).

Table 17 Distribution system operators in Denmark

Balance Responsible Parties (BRPs) in Denmark

Balance responsible parties buy and sell electricity at Nord Pool Sport on behalf of the electricity suppliers and plant owners. In Denmark, there are 46 approved balance responsible parties (Energinet 2009) (shown in Table 18).

Table 18 The Balance Responsible Parties in Denmark

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Ma, Z., Christensen, K. & Jørgensen, B.N. Business ecosystem architecture development: a case study of Electric Vehicle home charging. Energy Inform 4, 9 (2021). https://doi.org/10.1186/s42162-021-00142-y

Download citation

Keywords

  • Business ecosystem
  • Ecosystem architecture
  • Architecture design
  • Ontology
  • EV charging
